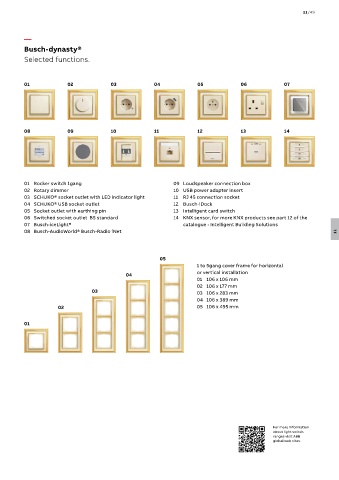

Busch-dynasty®
Selected functions.

01 02 03 04 05 06 07

08 09 10 11 12 13 14

01 Rocker switch 1gang 09 Loudspeaker connection box
02 Rotary dimmer 10 USB power adapter insert
03 SCHUKO® socket outlet with LED indicator light 11 RJ 45 connection socket
04 SCHUKO® USB socket outlet 12 Busch-iDock
05 Socket outlet with earthing pin 13 Intelligent card switch
06 Switched socket outlet BS standard 14 KNX sensor, for more KNX products see part 12 of the
07 Busch-iceLight® catalogue - Intelligent Building Solutions
08 Busch-AudioWorld® Busch-Radio iNet 11

05
1 to 5gang cover frame for horizontal
04 or vertical installation
01 106 x 106 mm
02 106 x 177 mm
03 03 106 x 283 mm
04 106 x 389 mm
02 05 106 x 495 mm

01

For more information
about light switch
ranges visit ABB
global web sites.
