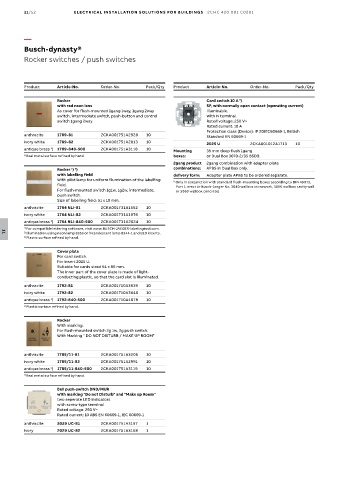

Page 1158 - Din prodcuts 2020

11/52 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Busch-dynasty®
Rocker switches / push switches

Product Article-No. Order-No. Pack/Qty Product Article-No. Order-No. Pack/Qty

Rocker Card switch 10 A )
1
with red neon lens SP, with normally open contact (operating current)
As cover for flush-mounted 1gang 1way, 1gang 2way Illuminable.
switch, intermediate switch, push-button and control With N terminal.
switch 1gang 2way. Rated voltage: 250 V~
Rated current: 10 A
Protection class (Device): IP 20IEC60669-1, British
anthracite 1789-81 2CKA001751A2928 10 Standard EN 60669-1
ivory white 1789-82 2CKA001751A2813 10 2025 U 2CKA001012A1713 10
antique brass ) 1789-840-500 2CKA001751A3118 10 Mounting 35 mm deep flush 1gang
1
boxes: or Dual Box 3070-2/35 BSDB.
1) Real metal surface refined by hand.
2gang product 2gang combination with adapter plate
2
1
Rocker ) ) combinations: APBS in Dual Box only.
with labelling field delivery form: Adapter plate APBS to be ordered separate.
With pilot lamp for uniform illumination of the labelling 1) Only in conjunction with standard flush-mounting boxes according to DIN 49073,
field. Part 1, erect or Busch-Jaeger No. 3040 wallbox stonework, 3050 wallbox cavity wall
For flush-mounted switch 1g1w, 1g2w, intermediate, or 3060 wallbox concrete)
push switch.
Size of labelling field: 51 x 10 mm.
anthracite 1764 NLI-81 2CKA001731A1552 10
ivory white 1764 NLI-82 2CKA001731A1876 10
antique brass ) 1764 NLI-840-500 2CKA001731A2024 10
3
1) For compatible lettering software, visit www.BUSCH-JAEGER-labelingtool.com.
2) Illumination using neon lamp 8353 or incandescent lamp 8344-1 and LED inserts.
11
3) Plastic surface refined by hand.
Cover plate
For card switch.
For insert 2025 U.
Suitable for cards sized 54 x 86 mm.
The inner part of the cover plate is made of light-
conducting plastic, so that the card slot is illuminated.
anthracite 1792-81 2CKA001710A3639 10
ivory white 1792-82 2CKA001710A3640 10
antique brass ) 1792-840-500 2CKA001710A4078 10
1
1) Plastic surface refined by hand.

Rocker
With marking.
For flush-mounted switch 2g 1w, 2g push switch.
With Marking " DO NOT DISTURB / MAKE UP ROOM"

anthracite 1785/11-81 2CKA001751A3205 10
ivory white 1785/11-82 2CKA001751A2991 10
antique brass ) 1785/11-840-500 2CKA001751A3119 10
1
1) Real metal surface refined by hand.

Bell push-switch DND/MUR
with marking "Do not Disturb" and "Make up Room"
two seperate LED indicators
with screw-type terminal
Rated voltage: 250 V~
Rated current: 10 ABS EN 60669-1, IEC 60669-1
anthracite 2029 UC-81 2CKA001751A3167 1
ivory 2029 UC-82 2CKA001751A3168 1
