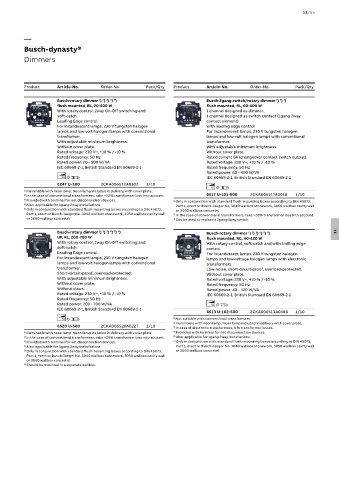

Page 1161 - Din prodcuts 2020

11/55

—
Busch-dynasty®
Dimmers

Product Article-No. Order-No. Pack/Qty Product Article-No. Order-No. Pack/Qty

3
2
Busch-rotary dimmer ) ) ) ) ) Busch-2gang switch/rotary dimmer ) ) )
1
2
1
3
5
4
flush mounted, RL, 20-500 W flush mounted, RL, 60-400 W
With rotary control, 2way On-Off switching and 1 channel designed as dimmer.
soft-catch. 1 channel designed as switch contact (1gang 2way
Leading Edge control. contact element)
For incandescent lamps, 230 V tungsten halogen with leading edge control
lamps and low-volt halogen lamps with conventional For incandescent lamps, 230 V tungsten halogen
transformer. lamps and low-volt halogen lamps with conventional
With adjustable minimum brightness. transformer.
Without cover plate. With adjustable minimum brightness.
Rated voltage: 230 V~, +10 % / -10 % Without cover plate.
Rated frequency: 50 Hz Rated current 6A (changeover contact switch output).
Rated power: 20 - 500 W/VA Rated voltage: 230 V~, +10 % / -10 %
IEC 60669-2-1, British Standard EN 60669-2-1 Rated frequency: 50 Hz
Rated power: 60 - 400 W/VA
IEC 60669-2-1, British Standard EN 60669-2-1
2247 U-500 2CKA006512A0302 1/10

1) Illuminable with neon lamp. Neon lamp included in delivery with cover plate.
2) In the case of conventional transformers, take ~20% transformer loss into account. 6517 U-101-500 2CKA006517A0018 1/10
3) Provided with terminal for net disconnection devices. 1) Only in conjunction with standard flush-mounting boxes according to DIN 49073,
4) Also applicable for 1gang 2way installations. Part 1, erect or Busch-Jaeger No. 3040 wallbox stonework, 3050 wallbox cavity wall
5) Only in conjunction with standard flush-mounting boxes according to DIN 49073, or 3060 wallbox concrete)
Part 1, erect or Busch-Jaeger No. 3040 wallbox stonework, 3050 wallbox cavity wall 2) In the case of conventional transformers, take ~20% transformer loss into account.
or 3060 wallbox concrete) 3) Can be used to replace a 2gang 1way switch.
5
4
2
3
6
1
Busch-rotary dimmer ) ) ) ) ) ) Busch-rotary dimmer ) ) ) ) ) ) 11
5
4
3
6
2
1
UP, RL, 200-700 W flush mounted, RC, 40-420 W
With rotary control, 2way On-Off switching and With rotary control, soft-catch and with trailing edge
soft-catch. control.
Leading Edge control. For incandescent lamps, 230 V tungsten halogen
For incandescent lamps, 230 V tungsten halogen lamps and low-voltage halogen lamps with electronic
lamps and low-volt halogen lamps with conventional transformers.
transformer. Low-noise, short-circuit-proof, overload-protected.
Short-circuit-proof, overload-protected. Without cover plate.
With adjustable minimum brightness. Rated voltage: 230 V~, +10 % / -10 %
Without cover plate. Rated frequency: 50 Hz
Without claws. Rated power: 40 - 420 W/VA
Rated voltage: 230 V~, +10 % / -10 % IEC 60669-2-1, British Standard EN 60669-2-1
Rated frequency: 50 Hz
Rated power: 200 - 700 W/VA
IEC 60669-2-1, British Standard EN 60669-2-1
6513 U-102-500 2CKA006513A0586 1/10
1) Not suitable with conventional transformers.
2) Illuminable with neon lamp. Neon lamp included in delivery with cover plate.
6520 U-500 2CKA006520A0227 1/10 3) In case of electronic transformers, 5 % transformer losses.
1) Illuminable with neon lamp. Neon lamp included in delivery with cover plate. 4) Provided with terminal for net disconnection devices.
2) In the case of conventional transformers, take ~20% transformer loss into account. 5) Also applicable for 1gang 2way installations.
3) Provided with terminal for net disconnection devices. 6) Only in conjunction with standard flush-mounting boxes according to DIN 49073,
4) Also applicable for 1gang 2way installations. Part 1, erect or Busch-Jaeger No. 3040 wallbox stonework, 3050 wallbox cavity wall
5) Only in conjunction with standard flush-mounting boxes according to DIN 49073, or 3060 wallbox concrete)
Part 1, erect or Busch-Jaeger No. 3040 wallbox stonework, 3050 wallbox cavity wall
or 3060 wallbox concrete)
6) Should be mounted in a seperate wallbox.
