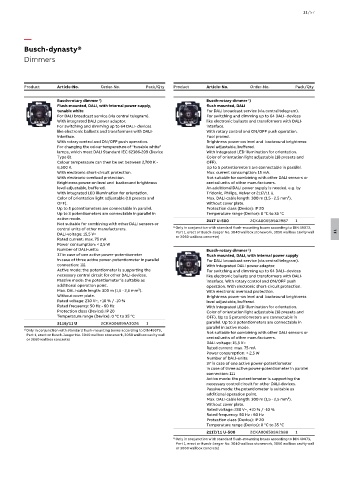

Page 1163 - Din prodcuts 2020

11/57

—
Busch-dynasty®
Dimmers

Product Article-No. Order-No. Pack/Qty Product Article-No. Order-No. Pack/Qty

Busch-rotary dimmer ) Busch-rotary dimmer )
1
1
Flush-mounted, DALI, with internal power supply, flush mounted, DALI
tunable white For DALI broadcast service (via central telegram).
For DALI broadcast service (via central telegram). For switching and dimming up to 64 DALI- devices
With integrated DALI power adaptor. like electronic ballasts and transformers with DALI-
For switching and dimming up to 64 DALI- devices interface.
like electronic ballasts and transformers with DALI- With rotary control and ON/OFF push operation.
interface. Fool proved.
With rotary control and ON/OFF push operation. Brightness power-on level and backround brightness
For changing the colour temperature of "tunable white" level adjustable, buffered.
lamps, which meet DALI Standard IEC 62386-209 (Device With integrated LED illumination for orientation.
Type 8). Color of orientation light adjustable (18 presets and
Colour temperature can then be set between 2,700 K - OFF).
6,500 K. Up to 5 potentiometers are connectable in parallel.
With electronic short-circuit protection. Max. current consumption: 15 mA.
With electronic overload protection. Not suitable for combining with other DALI sensors or
Brightness power-on level and backround brightness central units of other manufacturers.
level adjustable, buffered. An additional DALI power supply is needed, e.g. by
With integrated LED illumination for orientation. Tridonic, Philips, Helvar or 2117/11 U.
Color of orientation light adjustable (18 presets and Max. DALI-cable length: 300 m (1,5 - 2,5 mm²).
OFF). Without cover plate.
Up to 5 potentiometers are connectable in parallel. Protection class (Device): IP 20
Up to 3 potentiometers are connectable in parallel in Temperature range (Device): 0 °C to 35 °C
active mode. 2117 U-500 2CKA006599A2987 1
Not suitable for combining with other DALI sensors or
central units of other manufacturers. 1) Only in conjunction with standard flush-mounting boxes according to DIN 49073,
DALI-voltage: 15,5 V= Part 1, erect or Busch-Jaeger No. 3040 wallbox stonework, 3050 wallbox cavity wall 11
or 3060 wallbox concrete)
Rated current: max. 75 mA
Power consumption: < 2,5 W
Number of DALI-units: Busch-rotary dimmer )
1
37 in case of one active power-potentiometer flush mounted, DALI, with internal power supply
in case of three active power-potentiometer in parallel For DALI broadcast service (via central telegram).
connection: 111 With integrated DALI power adaptor.
Active mode: the potentiometer is supporting the For switching and dimming up to 64 DALI- devices
necessary control circuit for other DALI-devices. like electronic ballasts and transformers with DALI-
Passive mode: the potentiometer is suitable as interface. With rotary control and ON/OFF push
additional operation point. operation. With electronic short-circuit protection.
Max. DALI-cable length: 300 m (1,5 - 2,5 mm²). With electronic overload protection.
Without cover plate. Brightness power-on level and backround brightness
Rated voltage: 230 V~, +10 % / -10 % level adjustable, buffered.
Rated frequency: 50 Hz - 60 Hz With integrated LED illumination for orientation.
Protection class (Device): IP 20 Color of orientation light adjustable (18 presets and
Temperature range (Device): 0 °C to 35 °C OFF). Up to 5 potentiometers are connectable in
2116/11 U 2CKA006599A3026 1 parallel. Up to 3 potentiometers are connectable in
parallel in active mode.
1) Only in conjunction with standard flush-mounting boxes according to DIN 49073,
Part 1, erect or Busch-Jaeger No. 3040 wallbox stonework, 3050 wallbox cavity wall Not suitable for combining with other DALI sensors or
or 3060 wallbox concrete) central units of other manufacturers.
DALI-voltage: 15,5 V=
Rated current: max. 75 mA
Power consumption: < 2,5 W
Number of DALI-units:
37 in case of one active power-potentiometer
in case of three active power-potentiometer in parallel
connection: 111
Active mode: the potentiometer is supporting the
necessary control circuit for other DALI-devices.
Passive mode: the potentiometer is suitable as
additional operation point.
Max. DALI-cable length: 300 m (1,5 - 2,5 mm²).
Without cover plate.
Rated voltage: 230 V~, +10 % / -10 %
Rated frequency: 50 Hz - 60 Hz
Protection class (Device): IP 20
Temperature range (Device): 0 °C to 35 °C
2117/11 U-500 2CKA006599A2988 1
1) Only in conjunction with standard flush-mounting boxes according to DIN 49073,
Part 1, erect or Busch-Jaeger No. 3040 wallbox stonework, 3050 wallbox cavity wall
or 3060 wallbox concrete)
