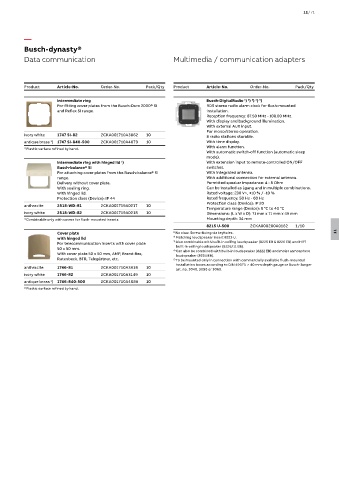

Page 1177 - Din prodcuts 2020

11/71

—
Busch-dynasty®
Data communication Multimedia / communication adapters

Product Article-No. Order-No. Pack/Qty Product Article-No. Order-No. Pack/Qty

3
2
Intermediate ring Busch-DigitalRadio ) ) ) ) )
1
4
5
For fitting cover plates from the Busch-Duro 2000® SI RDS stereo radio alarm clock for flush-mounted
and Reflex SI range. installation.
Reception frequency: 87.50 MHz - 108.00 MHz.
With display and background illumination.
With external AUX input.
For mono/stereo operation.
ivory white 1747 SI-82 2CKA001710A3862 10 8 radio stations storable.
1
antique brass ) 1747 SI-840-500 2CKA001710A4079 10 With time display.
With alarm function.
1) Plastic surface refined by hand.
With automatic switch-off function (automatic sleep
mode).
Intermediate ring with hinged lid ) With extension input to remote-controlled ON/OFF
1
Busch-balance® SI switches.
For attaching cover plates from the Busch-balance® SI With integrated antenna.
range. With additional connection for external antenna.
Delivery without cover plate. Permitted speaker impedance: 4 - 8 Ohm
With sealing ring. Can be installed as 1gang and in multiple combinations.
With hinged lid. Rated voltage: 230 V~, +10 % / -10 %
Protection class (Device): IP 44 Rated frequency: 50 Hz - 60 Hz
Protection class (Device): IP 20
anthracite 2518-WD-81 2CKA001719A0217 10
Temperature range (Device): 5 °C to 40 °C
ivory white 2518-WD-82 2CKA001719A0218 10 Dimensions: (L x W x D): 71 mm x 71 mm x 49 mm
1) Combinable only with covers for flush-mounted inserts Mounting depth: 34 mm
8215 U-500 2CKA008200A0182 1/10
Cover plate 1) No claw. Screw-fixing via keyholes. 11
with hinged lid 2) Matching loudspeaker insert 8223 U.
For telecommunication inserts with cover plate 3) Also combinable with built-in ceiling loudspeaker (8225 EB & 8226 EB) and HiFi
built-in ceiling loudspeaker (8226/11 EB).
50 x 50 mm. 4) Can also be combined with built-in loudspeaker (8222 EB) and moist atmosphere
With cover plate 50 x 50 mm, AMP, Brand-Rex, loudspeaker (8224 EB).
Rutenbeck, BTR, Telegärtner, etc. 5) To be mounted only in connection with commercially available flush-mounted
installation boxes according to DIN 49073 > 40 mm depth gauge or Busch-Jaeger
anthracite 1746-81 2CKA001710A3618 10 art. no. 3040, 3050 or 3060.
ivory white 1746-82 2CKA001710A3149 10
1
antique brass ) 1746-840-500 2CKA001710A4086 10
1) Plastic surface refined by hand.
