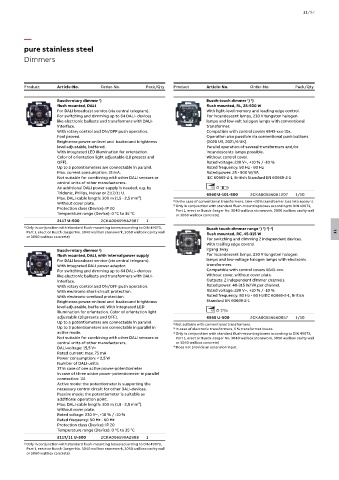

11/97

—
pure stainless steel
Dimmers

Product Article-No. Order-No. Pack/Qty Product Article-No. Order-No. Pack/Qty

2
Busch-rotary dimmer ) Busch-touch dimmer ) )
1
1
flush mounted, DALI flush mounted, RL, 25-500 W
For DALI broadcast service (via central telegram). With light-level memory and leading edge control.
For switching and dimming up to 64 DALI- devices For incandescent lamps, 230 V tungsten halogen
like electronic ballasts and transformers with DALI- lamps and low-volt halogen lamps with conventional
interface. transformer.
With rotary control and ON/OFF push operation. Compatible with control covers 6543-xxx-10x.
Fool proved. Operation also possible via conventional push buttons
Brightness power-on level and backround brightness (2020 US, 2021/6 UK).
level adjustable, buffered. Parallel operation of several transformers and/or
With integrated LED illumination for orientation. incandescents lamps possible.
Color of orientation light adjustable (18 presets and Without control cover.
OFF). Rated voltage: 230 V~, +10 % / -10 %
Up to 5 potentiometers are connectable in parallel. Rated frequency: 50 Hz - 60 Hz
Max. current consumption: 15 mA. Rated power: 25 - 500 W/VA
Not suitable for combining with other DALI sensors or IEC 60669-2-1, British Standard EN 60669-2-1
central units of other manufacturers.
An additional DALI power supply is needed, e.g. by
Tridonic, Philips, Helvar or 2117/11 U. 6560 U-101-500 2CKA006560A1207 1/10
Max. DALI-cable length: 300 m (1,5 - 2,5 mm²). 1) In the case of conventional transformers, take ~20% transformer loss into account.
Without cover plate. 2) Only in conjunction with standard flush-mounting boxes according to DIN 49073,
Protection class (Device): IP 20 Part 1, erect or Busch-Jaeger No. 3040 wallbox stonework, 3050 wallbox cavity wall
Temperature range (Device): 0 °C to 35 °C or 3060 wallbox concrete)
2117 U-500 2CKA006599A2987 1
1) Only in conjunction with standard flush-mounting boxes according to DIN 49073, Busch touch-dimmer range ) ) ) )
1
2
4
3
Part 1, erect or Busch-Jaeger No. 3040 wallbox stonework, 3050 wallbox cavity wall flush mounted, RC, 45-315 W 11
or 3060 wallbox concrete)
For switching and dimming 2 independent devices.
With trailing edge control.
1
Busch-rotary dimmer ) 2gang 1way
flush mounted, DALI, with internal power supply For incandescent lamps, 230 V tungsten halogen
For DALI broadcast service (via central telegram). lamps and low-voltage halogen lamps with electronic
With integrated DALI power adaptor. transformers.
For switching and dimming up to 64 DALI- devices Compatible with control covers 6545-xxx.
like electronic ballasts and transformers with DALI- Without cover, without cover plate.
interface. Outputs: 2 independent dimmer channels.
With rotary control and ON/OFF push operation. Rated power: 40-315 W/VA per channel.
With electronic short-circuit protection. Rated voltage: 230 V~, +10 % / -10 %
With electronic overload protection. Rated frequency: 50 Hz - 60 HzIEC 60669-2-1, British
Brightness power-on level and backround brightness Standard EN 60669-2-1
level adjustable, buffered. With integrated LED
illumination for orientation. Color of orientation light
adjustable (18 presets and OFF). 6565 U-500 2CKA006565A0057 1/10
Up to 5 potentiometers are connectable in parallel. 1) Not suitable with conventional transformers.
Up to 3 potentiometers are connectable in parallel in 2) In case of electronic transformers, 5 % transformer losses.
active mode. 3) Only in conjunction with standard flush-mounting boxes according to DIN 49073,
Not suitable for combining with other DALI sensors or Part 1, erect or Busch-Jaeger No. 3040 wallbox stonework, 3050 wallbox cavity wall
central units of other manufacturers. or 3060 wallbox concrete)
DALI-voltage: 15,5 V= 4) Does not provide an extension input.
Rated current: max. 75 mA
Power consumption: < 2,5 W
Number of DALI-units:
37 in case of one active power-potentiometer
in case of three active power-potentiometer in parallel
connection: 111
Active mode: the potentiometer is supporting the
necessary control circuit for other DALI-devices.
Passive mode: the potentiometer is suitable as
additional operation point.
Max. DALI-cable length: 300 m (1,5 - 2,5 mm²).
Without cover plate.
Rated voltage: 230 V~, +10 % / -10 %
Rated frequency: 50 Hz - 60 Hz
Protection class (Device): IP 20
Temperature range (Device): 0 °C to 35 °C
2117/11 U-500 2CKA006599A2988 1
1) Only in conjunction with standard flush-mounting boxes according to DIN 49073,
Part 1, erect or Busch-Jaeger No. 3040 wallbox stonework, 3050 wallbox cavity wall
or 3060 wallbox concrete)
