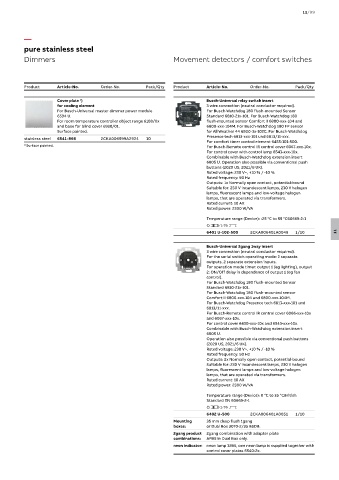

Page 1205 - Din prodcuts 2020

11/99

—
pure stainless steel
Dimmers Movement detectors / comfort switches

Product Article-No. Order-No. Pack/Qty Product Article-No. Order-No. Pack/Qty

Cover plate ) 1 Busch-Universal relay switch insert
for cooling element 3 wire connection (neutral conductor required).
For Busch-Universal master dimmer power module For Busch-Watchdog 180 flush-mounted Sensor
6594 U. Standard 6810-21x-101. For Busch-Watchdog 180
For room temperature controller object range 6108/0x flush-mounted sensor Comfort II 6800-xxx-104 and
and base for blind cover 6930/01. 6800-xxx-104M. For Busch-Watchdog 180 FP sensor
Surface painted. for All Weather 44 6800-3x-102C. For Busch-Watchdog
Presence tech 6813-xxx-101 und 6813/11-xxx.
stainless steel 6541-866 2CKA006599A2924 10
For comfort timer control element 6455-101-500.
1) Surface painted.
For Busch-Remote control IR control cover 6067-xxx-10x.
For control cover with control lamp 6543-xxx-10x.
Combinable with Busch-Watchdog extension insert
6805 U. Operation also possible via conventional push
buttons (2020 US, 2021/6 UK).
Rated voltage: 230 V~, +10 % / -10 %
Rated frequency: 50 Hz
Outputs: 1x Normally open contact, potential-bound
Suitable for: 230 V incandescent lamps, 230 V halogen
lamps, fluorescent lamps and low-voltage halogen
lamps, that are operated via transformers.
Rated current: 10 AX
Rated power: 2300 W/VA
Temperature range (Device): -25 °C to 55 °C60669-2-1

6401 U-102-500 2CKA006401A0049 1/10 11

Busch-Universal 2gang 1way insert
3 wire connection (neutral conductor required).
For the serial switch operating mode: 2 separate
outputs, 2 separate extension inputs.
For operation mode timer: output 1 (eg lighting), output
2: ON/Off delay in dependence of output 1 (eg fan
control).
For Busch-Watchdog 180 flush-mounted Sensor
Standard 6810-21x-101.
For Busch-Watchdog 180 flush-mounted sensor
Comfort II 6800-xxx-104 and 6800-xxx-104M.
For Busch-Watchdog Presence tech 6813-xxx-101 und
6813/11-xxx.
For Busch-Remote control IR control cover 6066-xxx-10x
and 6067-xxx-10x.
For control cover 6430-xxx-10x and 6543-xxx-10x.
Combinable with Busch-Watchdog extension insert
6805 U.
Operation also possible via conventional push buttons
(2020 US, 2021/6 UK).
Rated voltage: 230 V~, +10 % / -10 %
Rated frequency: 50 Hz
Outputs: 2x Normally open contact, potential-bound
Suitable for: 230 V incandescent lamps, 230 V halogen
lamps, fluorescent lamps and low-voltage halogen
lamps, that are operated via transformers.
Rated current: 10 AX
Rated power: 2300 W/VA
Temperature range (Device): 0 °C to 35 °CBritish
Standard EN 60669-2-1

6402 U-500 2CKA006401A0051 1/10
Mounting 35 mm deep flush 1gang
boxes: or Dual Box 3070-2/35 BSDB.
2gang product 2gang combination with adapter plate
combinations: APBS in Dual Box only.
neon indicator: neon lamp 3855, one neon lamp is supplied together with
control cover plates 6540-2x.
