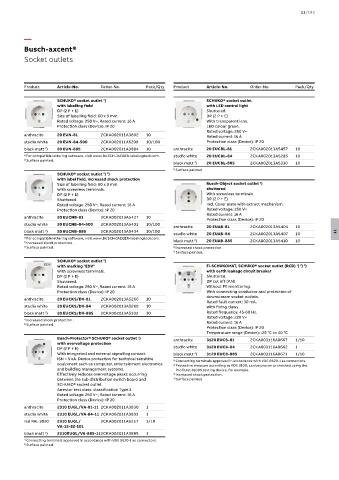

Page 1299 - Din prodcuts 2020

11/193

—
Busch-axcent®
Socket outlets

Product Article-No. Order-No. Pack/Qty Product Article-No. Order-No. Pack/Qty

1
SCHUKO® socket outlet ) SCHUKO® socket outlet
with labelling field with LED control light
DP (2 P + E) Shuttered.
Size of labelling field: 60 x 9 mm. DP (2 P + E)
Rated voltage: 250 V~, Rated current: 16 A With transparent lens.
Protection class (Device): IP 20 LED colour green.
Rated voltage: 250 V~
anthracite 20 EUN-81 2CKA002011A3802 10 Rated current: 16 A
studio white 20 EUN-84-500 2CKA002011A6209 10/100 Protection class (Device): IP 20
black matt ) 20 EUN-885 2CKA002011A3884 10 anthracite 20 EUCBL-81 2CKA002013A5457 10
2
studio white 20 EUCBL-84 2CKA002013A5286 10
1) For compatible lettering software, visit www.BUSCH-JAEGER-labelingtool.com.
2) Surface painted.
black matt ) 1 20 EUCBL-885 2CKA002013A5330 10
1) Surface painted.
1
SCHUKO® socket outlet ) )
2
with label field, increased shock protection
Size of labelling field: 60 x 9 mm. Busch-Object socket outlet ) 1
With screwless terminals. shuttered
DP (2 P + E) With screwless terminals.
Shuttered. DP (2 P + E)
Rated voltage: 250 V~, Rated current: 16 A Incl. Cover plate with extract mechanism.
Protection class (Device): IP 20 Rated voltage: 250 V~
Rated current: 16 A
anthracite 20 EUCNB-81 2CKA002013A5427 10
Protection class (Device): IP 20
studio white 20 EUCNB-84-500 2CKA002013A5431 10/100
anthracite 20 EUAB-81 2CKA002013A5404 10
black matt ) 20 EUCNB-885 2CKA002013A5434 10/100 11
3
studio white 20 EUAB-84 2CKA002013A5407 10
1) For compatible lettering software, visit www.BUSCH-JAEGER-labelingtool.com.
2) Increased shock protection . black matt ) 2 20 EUAB-885 2CKA002013A5410 10
3) Surface painted. 1) Increased shock protection .
2) Surface painted.
SCHUKO® socket outlet )
1
2
1
3
with marking "EDV" FI-SCHUKOMAT, SCHUKO® socket outlet (RCD) ) ) )
With screwless terminals. with earth leakage circuit breaker
DP (2 P + E) Shuttered.
Shuttered. DP cut off (P,N)
Rated voltage: 250 V~, Rated current: 16 A Without PE monitoring.
Protection class (Device): IP 20 With connecting conductor and protection of
downstream socket outlets.
anthracite 20 EUCKS/DV-81 2CKA002013A5266 10
Rated fault current: 30 mA.
studio white 20 EUCKS/DV-84 2CKA002013A5268 10 With fixing claws.
2
black matt ) 20 EUCKS/DV-885 2CKA002013A5332 10 Rated frequency: 45-60 Hz.
Rated voltage: 230 V~
1) Increased shock protection .
Rated current: 16 A
2) Surface painted.
Protection class (Device): IP 20
Temperature range (Device): -25 °C to 40 °C
Busch-Protector® SCHUKO® socket outlet ) 1 anthracite 3120 EUCB-81 2CKA003116A0667 1/10
with overvoltage protection
DP (2 P + E) studio white 3120 EUCB-84 2CKA003116A0662 1
With integrated and external signalling contact. black matt ) 3120 EUCB-885 2CKA003116A0671 1/10
4
ISN = 5 kA. Device protection for technical sensitive 1) Connecting terminals approved in accordance with VDE 0620-1 as connectors.
equipment such as computer, entertainment electronics 2) Protective measure according to VDE 0100; can be proven or checked using the
and building management systems. Profitest 0100S testing device, for example.
Effectively reduces overvoltage peaks occurring 3) Increased shock protection .
between the sub-distribution switch board and 4) Surface painted.
SCHUKO® socket outlet.
Arrestor test class: classification Type 2
Rated voltage: 250 V~, Rated current: 16 A
Protection class (Device): IP 20
anthracite 2310 EUGL/VA-81-11 2CKA002011A3830 1
studio white 2310 EUGL/VA-84-11 2CKA002011A3833 1
red RAL 3020 2310 EUGL/ 2CKA002011A6257 1/10
VA-12-82-101
2
black matt ) 2310EUGL/VA-885-112CKA002011A3885 1
1) Connecting terminals approved in accordance with VDE 0620-1 as connectors.
2) Surface painted.
