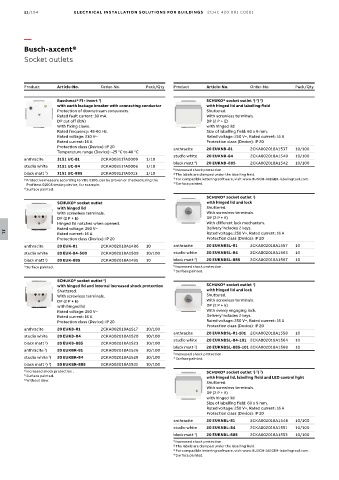

11/194 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Busch-axcent®
Socket outlets

Product Article-No. Order-No. Pack/Qty Product Article-No. Order-No. Pack/Qty

1
2
Buschmat® FI - Insert ) SCHUKO® socket outlet ) ) )
1
3
with earth leakage breaker with connecting conductor with hinged lid and labelling field
Protection of downstream consumers. Shuttered.
Rated fault current: 30 mA. With screwless terminals.
DP cut off (P,N) DP (2 P + E)
With fixing claws. with hinged lid
Rated frequency: 45-60 Hz. Size of labelling field: 60 x 9 mm.
Rated voltage: 230 V~ Rated voltage: 250 V~, Rated current: 16 A
Rated current: 16 A Protection class (Device): IP 20
Protection class (Device): IP 20 anthracite 20 EUKNB-81 2CKA002018A1537 10/100
Temperature range (Device): -25 °C to 40 °C
studio white 20 EUKNB-84 2CKA002018A1540 10/100
anthracite 3151 UC-81 2CKA003117A0009 1/10
black matt ) 20 EUKNB-885 2CKA002018A1542 10/100
4
studio white 3151 UC-84 2CKA003117A0006 1/10
1) Increased shock protection .
2
black matt ) 3151 UC-885 2CKA003117A0013 1/10 2) The labels are clamped under the labelling field.
1) Protective measure according to VDE 0100; can be proven or checked using the 3) For compatible lettering software, visit www.BUSCH-JAEGER-labelingtool.com.
Profitest 0100S testing device, for example. 4) Surface painted.
2) Surface painted.
SCHUKO® socket outlet )
1
SCHUKO® socket outlet with hinged lid and lock
with hinged lid Shuttered.
With screwless terminals. With screwless terminals.
DP (2 P + E) DP (2 P + E)
Hinged lid notches when opened. With different lock mechanism.
Rated voltage: 250 V~ Delivery includes 2 keys.
Rated current: 16 A Rated voltage: 250 V~, Rated current: 16 A
11
Protection class (Device): IP 20 Protection class (Device): IP 20
anthracite 20 EUK-81 2CKA002018A1486 10 anthracite 20 EUKNBSL-81 2CKA002018A1557 10
studio white 20 EUK-84-500 2CKA002018A1509 10/100 studio white 20 EUKNBSL-84 2CKA002018A1563 10
black matt ) 20 EUK-885 2CKA002018A1495 10 black matt ) 2 20 EUKNBSL-885 2CKA002018A1567 10
1
1) Surface painted. 1) Increased shock protection .
2) Surface painted.
SCHUKO® socket outlet )
1
1
with hinged lid and internal increased shock protection SCHUKO® socket outlet )
Shuttered. with hinged lid and lock
With screwless terminals. Shuttered.
DP (2 P + E) With screwless terminals.
with hinged lid DP (2 P + E)
Rated voltage: 250 V~ With evenly engaging lock.
Rated current: 16 A Delivery includes 2 keys.
Protection class (Device): IP 20 Rated voltage: 250 V~, Rated current: 16 A
Protection class (Device): IP 20
anthracite 20 EUKB-81 2CKA002018A1517 10/100
anthracite 20 EUKNBSL-81-101 2CKA002018A1558 10
studio white 20 EUKB-84 2CKA002018A1520 10/100
studio white 20 EUKNBSL-84-101 2CKA002018A1564 10
2
black matt ) 20 EUKB-885 2CKA002018A1523 10/100
black matt ) 2 20 EUKNBSL-885-101 2CKA002018A1568 10
anthracite ) 20 EUKBR-81 2CKA002018A1526 10/100
3
1) Increased shock protection .
studio white ) 3 20 EUKBR-84 2CKA002018A1529 10/100 2) Surface painted.
2
3
black matt ) ) 20 EUKBR-885 2CKA002018A1531 10/100
1) Increased shock protection . SCHUKO® socket outlet ) ) )
3
2
1
2) Surface painted. with hinged lid, labelling field and LED control light
3) Without claw.
Shuttered.
With screwless terminals.
DP (2 P + E)
with hinged lid
Size of labelling field: 60 x 9 mm.
Rated voltage: 250 V~, Rated current: 16 A
Protection class (Device): IP 20
anthracite 20 EUKNBL-81 2CKA002018A1548 10/100
studio white 20 EUKNBL-84 2CKA002018A1551 10/100
black matt ) 20 EUKNBL-885 2CKA002018A1553 10/100
4
1) Increased shock protection .
2) The labels are clamped under the labelling field.
3) For compatible lettering software, visit www.BUSCH-JAEGER-labelingtool.com.
4) Surface painted.
