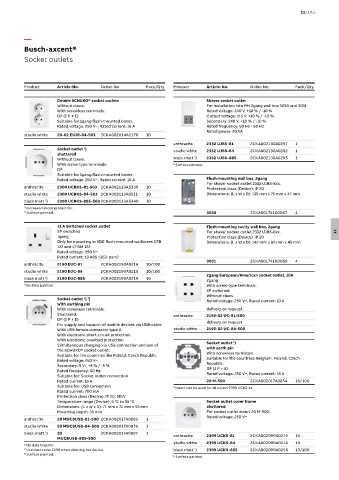

Page 1301 - Din prodcuts 2020

11/195

—
Busch-axcent®
Socket outlets

Product Article-No. Order-No. Pack/Qty Product Article-No. Order-No. Pack/Qty

Double SCHUKO® socket outlets Shaver socket outlet
Without claws. For installation into FM 2gang wall box 3030 and 3031.
With screwless terminals. Rated voltage: 240 V, +10 % / -10 %
DP (2 P + E) Output voltage: 115 V, +10 % / -10 %
Suitable for 1gang flush-mounted boxes. Secondary: 240 V, +10 % / -10 %
Rated voltage: 250 V~, Rated current: 16 A Rated frequency: 50 Hz - 60 Hz
Rated power: 20 VA
studio white 20-02 EUJR-84-503 2CKA002014A1370 10
anthracite 2332 UJBS-81 2CKA002130A0297 1
Socket outlet ) 1 studio white 2332 UJBS-84 2CKA002130A0292 1
shuttered
Without claws. black matt ) 1 2332 UJBS-885 2CKA002130A0295 1
With screw-type terminals. 1) Surface painted.
DP
Suitable for 1gang flush-mounted boxes.
Rated voltage: 250 V~, Rated current: 16 A Flush-mounting wall box, 2gang
For shaver socket outlet 2332 UJBS-8xx.
anthracite 2300 UCRKS-81-503 2CKA002113A5339 10 Protection class (Device): IP 20
studio white 2300 UCRKS-84-503 2CKA002113A0511 10 Dimensions: (L x W x D): 135 mm x 75 mm x 47 mm
black matt ) 2300 UCRKS-885-503 2CKA002113A5340 10
2
1) Increased shock protection .
2) Surface painted. 3030 2CKA001741A0067 4
13 A Switched socket outlet Flush-mounting cavity wall box, 2gang
SP switched For shaver socket outlet 2332 UJBS-8xx. 11
1gang Protection class (Device): IP 20
Only for mounting in VDE flush-mounted wallboxes CFB Dimensions: (L x W x D): 142 mm x 82 mm x 45 mm
122 and CFBM 122.
Rated voltage: 250 V~
Rated current: 13 ABS 1363: part2
3031 2CKA001741A0068 4
anthracite 2190 EUC-81 2CKA002190A0216 10/100
studio white 2190 EUC-84 2CKA002190A0215 10/100
2gang European/American socket outlet, 10A
1
black matt ) 2190 EUC-885 2CKA002190A0219 10 2gang
With screw-type terminals.
1) Surface painted.
SP switched
Without claws.
2
1
Socket outlet ) ) Rated voltage: 250 V~, Rated current: 10 A
with earthing pin
With screwless terminals. delivery on request
Shuttered. anthracite 2192-02 UC-81-500
DP (2 P + E) delivery on request
For supply and support of mobile devices via USB-cable.
With USB female connector type A. studio white 2192-02 UC-84-500
With electronic short-circuit protection.
With electronic overload protection. 1
Simultaneous charging via USB connection and use of Socket outlet )
the SCHUKO® socket outlet. with earth pin
Suitable for the countries like Poland, Czech Republic. With screwless terminals.
Rated voltage: 250 V~ Suitable for the countries: Belgium, Poland, Czech
Secondary: 5 V-, +5 % / -5 % Republic.
Rated frequency: 50 Hz DP (2 P + E)
Suitable for: Socket outlet connection Rated voltage: 250 V~, Rated current: 16 A
Rated current: 16 A 20 M-500 2CKA002017A0854 10/100
Suitable for: USB connection 1) Insert can be used for all covers 2399 UCKS-xx.
Rated current: 700 mA
Protection class (Device): IP 20, SELV
Temperature range (Device): 5 °C to 35 °C Socket outlet cover frame
Dimensions: (L x W x D): 71 mm x 71 mm x 53 mm shuttered
Mounting depth: 35 mm For socket outlet insert 20 M-500.
Rated voltage: 250 V~
anthracite 20 MUCBUSB-81-500 2CKA002017A0893 1
studio white 20 MUCBUSB-84-500 2CKA002017A0876 1
black matt ) 20 2CKA002017A0897 1 anthracite 2399 UCKS-81 2CKA002099A0216 10
3
MUCBUSB-885-500
studio white 2399 UCKS-84 2CKA002099A0214 10
1) No data transfer.
2) Use dust cover 2098 when cleaning the device. black matt ) 1 2399 UCKS-885 2CKA002099A0256 10/100
3) Surface painted.
1) Surface painted.
