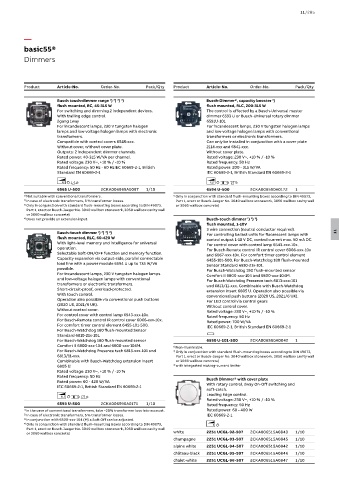

Page 1391 - Din prodcuts 2020

11/285

—
basic55®
Dimmers

Product Article-No. Order-No. Pack/Qty Product Article-No. Order-No. Pack/Qty

4
Busch touch-dimmer range ) ) ) ) Busch-Dimmer®, capacity booster ) 1
1
2
3
flush mounted, RC, 45-315 W flush mounted, RLC, 200-315 W
For switching and dimming 2 independent devices. The control is effected by a Busch-Universal master
With trailing edge control. dimmer 6593 U or Busch-Universal rotary dimmer
2gang 1way 6591U-101
For incandescent lamps, 230 V tungsten halogen For incandescent lamps, 230 V tungsten halogen lamps
lamps and low-voltage halogen lamps with electronic and low-voltage halogen lamps with conventional
transformers. transformers or electronic transformers.
Compatible with control covers 6545-xxx. Can only be installed in conjunction with a cover plate
Without cover, without cover plate. 2114-xxx and 6541-xxx.
Outputs: 2 independent dimmer channels. Without cover plate.
Rated power: 40-315 W/VA per channel. Rated voltage: 230 V~, +10 % / -10 %
Rated voltage: 230 V~, +10 % / -10 % Rated frequency: 50 Hz
Rated frequency: 50 Hz - 60 HzIEC 60669-2-1, British Rated power: 200 - 315 W/VA
Standard EN 60669-2-1 IEC 60669-2-1, British Standard EN 60669-2-1

6565 U-500 2CKA006565A0057 1/10 6594 U-500 2CKA006590A0172 1
1) Not suitable with conventional transformers. 1) Only in conjunction with standard flush-mounting boxes according to DIN 49073,
2) In case of electronic transformers, 5 % transformer losses. Part 1, erect or Busch-Jaeger No. 3040 wallbox stonework, 3050 wallbox cavity wall
3) Only in conjunction with standard flush-mounting boxes according to DIN 49073, or 3060 wallbox concrete)
Part 1, erect or Busch-Jaeger No. 3040 wallbox stonework, 3050 wallbox cavity wall
or 3060 wallbox concrete)
4) Does not provide an extension input. Busch-touch dimmer ) ) )
2
1
3
flush mounted, 1-10V
3 wire connection (neutral conductor required).
4
1
Busch-touch dimmer ) ) ) ) For controlling ballast units for fluorescent lamps with 11
3
2
flush mounted, RLC, 60-420 W control output 1-10 V DC, control current max. 50 mA DC.
With light-level memory and intelligence for universal For control cover with control lamp 6543-xxx-10x.
operation. For Busch-Remote control IR control cover 6066-xxx-10x
Selectable Soft-ON/OFF function and memory function. and 6067-xxx-10x. For comfort timer control element
Capacity expansion via output-side, parallel connectable 6455-101-500. For Busch-Watchdog 180 flush-mounted
load line with a power module 6594 U up to 735 W/VA Sensor Standard 6810-21x-101.
possible. For Busch-Watchdog 180 flush-mounted sensor
For incandescent lamps, 230 V tungsten halogen lamps Comfort II 6800-xxx-104 and 6800-xxx-104M.
and low-voltage halogen lamps with conventional For Busch-Watchdog Presence tech 6813-xxx-101
transformers or electronic transformers. und 6813/11-xxx. Combinable with Busch-Watchdog
Short-circuit-proof, overload-protected. extension insert 6805 U. Operation also possible via
With touch control. conventional push buttons (2020 US, 2021/6 UK).
Operation also possible via conventional push buttons For LED control via control gears
(2020 US, 2021/6 UK). Without control cover.
Without control cover. Rated voltage: 230 V~, +10 % / -10 %
For control cover with control lamp 6543-xxx-10x. Rated frequency: 50 Hz
For Busch-Remote control IR control cover 6066-xxx-10x. Rated power: 700 W/VA
For comfort timer control element 6455-101-500. IEC 60669-2-1, British Standard EN 60669-2-1
For Busch-Watchdog 180 flush-mounted Sensor
Standard 6810-21x-101.
For Busch-Watchdog 180 flush-mounted sensor 6550 U-101-500 2CKA006550A0042 1
Comfort II 6800-xxx-104 and 6800-xxx-104M. 1) Non-illuminable.
For Busch-Watchdog Presence tech 6813-xxx-101 und 2) Only in conjunction with standard flush-mounting boxes according to DIN 49073,
6813/11-xxx. Part 1, erect or Busch-Jaeger No. 3040 wallbox stonework, 3050 wallbox cavity wall
Combinable with Busch-Watchdog extension insert or 3060 wallbox concrete)
6805 U. 3) with integrated making-current limiter
Rated voltage: 230 V~, +10 % / -10 %
Rated frequency: 50 Hz
Rated power: 60 - 420 W/VA Busch Dimmer® with cover plate
IEC 60669-2-1, British Standard EN 60669-2-1 With rotary control, 2way On-Off switching and
soft-catch.
Leading Edge control.
Rated voltage: 230 V~, +10 % / -10 %
6593 U-500 2CKA006590A0171 1/10 Rated frequency: 50 Hz
1) In the case of conventional transformers, take ~20% transformer loss into account. Rated power: 60 - 400 W
2) In case of electronic transformers, 5 % transformer losses. IEC 60669-2-1
3) In conjunction with 6800-xxx-104 (M) a Soft Off can be adjusted.
4) Only in conjunction with standard flush-mounting boxes according to DIN 49073,
Part 1, erect or Busch-Jaeger No. 3040 wallbox stonework, 3050 wallbox cavity wall
or 3060 wallbox concrete) white 2251 UCGL-92-507 2CKA006515A0843 1/10
champagne 2251 UCGL-93-507 2CKA006515A0845 1/10
alpine white 2251 UCGL-94-507 2CKA006515A0842 1/10
château-black 2251 UCGL-95-507 2CKA006515A0846 1/10
chalet-white 2251 UCGL-96-507 2CKA006515A0847 1/10
