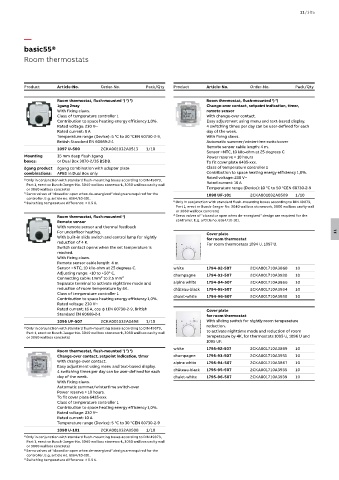

Page 1411 - Din prodcuts 2020

11/305

—
basic55®
Room thermostats

Product Article-No. Order-No. Pack/Qty Product Article-No. Order-No. Pack/Qty

1
2
3
1
2
Room thermostat, flush-mounted ) ) ) Room thermostat, flush-mounted ) )
1gang 2way Change-over contact, setpoint indication, timer,
With fixing claws. remote sensor
Class of temperature controller 1 With change-over contact.
Contribution to space heating energy efficiency 1,0%. Easy adjustment using menu and text-based display.
Rated voltage: 230 V~ 4 switching times per day can be user-defined for each
Rated current: 5 A day of the week.
Temperature range (Device): 5 °C to 30 °CEN 60730-2-9, With fixing claws.
British Standard EN 60669-2-1 Automatic summer/wintertime switch-over
Remote sensor cable length: 4 m.
1097 U-500 2CKA001032A0513 1/10
Sensor =NTC, 10 kilo-ohm at 25 degrees C.
Mounting 35 mm deep flush 1gang Power reserve > 10 hours
boxes: or Dual Box 3070-2/35 BSDB. To fit cover plate 6435-xxx.
2gang product 2gang combination with adapter plate Class of temperature controller 1
combinations: APBS in Dual Box only. Contribution to space heating energy efficiency 1,0%.
Rated voltage: 230 V~
1) Only in conjunction with standard flush-mounting boxes according to DIN 49073,
Part 1, erect or Busch-Jaeger No. 3040 wallbox stonework, 3050 wallbox cavity wall Rated current: 16 A
or 3060 wallbox concrete) Temperature range (Device): 10 °C to 50 °CEN 60730-2-9
2) Servo valves of "closed or open when de-energized“ design are required for the 1098 UF-101 2CKA001032A0509 1/10
controller. E.g. article no. 6164/10-101.
3) Switching temperature difference: ± 0.5 K. 1) Only in conjunction with standard flush-mounting boxes according to DIN 49073,
Part 1, erect or Busch-Jaeger No. 3040 wallbox stonework, 3050 wallbox cavity wall
or 3060 wallbox concrete)
Room thermostat, flush-mounted ) 2) Servo valves of "closed or open when de-energized“ design are required for the
1
Remote sensor controller. E.g. article no. 6164/10-101.
With remote sensor and thermal feedback
For underfloor heating. Cover plate 11
With built-in slide switch and control lamp for nightly for room thermostat
reduction of 4 K. For room thermostats 1094 U, 1097 U.
Switch contact opens when the set temperature is
reached.
With fixing claws.
Remote sensor cable length: 4 m.
Sensor =NTC, 10 kilo-ohm at 25 degrees C. white 1794-92-507 2CKA001710A3868 10
Adjusting range: +10 to +50° C. champagne 1794-93-507 2CKA001710A3930 10
Connecting cable: 1mm² to 2.5 mm²
Separate terminal to activate nighttime mode and alpine white 1794-94-507 2CKA001710A3866 10
reduction of room temperature by 4K. château-black 1794-95-507 2CKA001710A3934 10
Class of temperature controller 1
Contribution to space heating energy efficiency 1,0%. chalet-white 1794-96-507 2CKA001710A3938 10
Rated voltage: 230 V~
Rated current: 16 A, cos φ 1EN 60730-2-9, British Cover plate
Standard EN 60669-2-1 for room thermostat
1095 UF-507 2CKA001032A0498 1/10 With sliding switch for nightly room temperature
reduction.
1) Only in conjunction with standard flush-mounting boxes according to DIN 49073,
Part 1, erect or Busch-Jaeger No. 3040 wallbox stonework, 3050 wallbox cavity wall to activate nighttime mode and reduction of room
or 3060 wallbox concrete) temperature by 4K, for thermostats 1095 U, 1096 U and
1095 UF.
white 1795-92-507 2CKA001710A3869 10
Room thermostat, flush-mounted ) ) )
2
1
3
Change-over contact, setpoint indication, timer champagne 1795-93-507 2CKA001710A3931 10
With change-over contact. alpine white 1795-94-507 2CKA001710A3867 10
Easy adjustment using menu and text-based display.
4 switching times per day can be user-defined for each château-black 1795-95-507 2CKA001710A3935 10
day of the week. chalet-white 1795-96-507 2CKA001710A3939 10
With fixing claws.
Automatic summer/wintertime switch-over
Power reserve > 10 hours.
To fit cover plate 6435-xxx.
Class of temperature controller 1
Contribution to space heating energy efficiency 1,0%.
Rated voltage: 230 V~
Rated current: 10 A
Temperature range (Device): 5 °C to 30 °CEN 60730-2-9
1098 U-101 2CKA001032A0508 1/10
1) Only in conjunction with standard flush-mounting boxes according to DIN 49073,
Part 1, erect or Busch-Jaeger No. 3040 wallbox stonework, 3050 wallbox cavity wall
or 3060 wallbox concrete)
2) Servo valves of "closed or open when de-energized“ design are required for the
controller. E.g. article no. 6164/10-101.
3) Switching temperature difference: ± 0.5 K.
