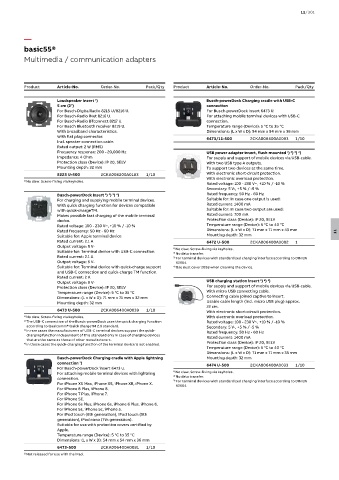

Page 1407 - Din prodcuts 2020

11/301

—
basic55®
Multimedia / communication adapters

Product Article-No. Order-No. Pack/Qty Product Article-No. Order-No. Pack/Qty

Loudspeaker insert ) Busch-powerDock Charging cradle with USB-C
1
5 cm (2") connection
For Busch-DigitalRadio 8215 U/8216 U. For Busch-powerDock insert 6473 U.
For Busch-Radio iNet 8216 U. For attaching mobile terminal devices with USB-C
For Busch-Radio BTconnect 8217 U. connection.
For Busch Bluetooth receiver 8219 U. Temperature range (Device): 5 °C to 35 °C
With broadband characteristics. Dimensions: (L x W x D): 54 mm x 54 mm x 36 mm
With flat plug connector. 6473/11-500 2CKA006400A0083 1/10
Incl. speaker connection cable.
Rated output: 2 W (RMS)
Frequency response: 200 - 20,000 Hz USB power adapter insert, flush-mounted ) ) ) )
3
4
1
2
Impedance: 4 Ohm For supply and support of mobile devices via USB-cable.
Protection class (Device): IP 20, SELV With two USB type A outputs.
Mounting depth: 32 mm To support two devices at the same time.
8223 U-500 2CKA008200A0183 1/10 With electronic short-circuit protection.
With electronic overload protection.
1) No claw. Screw-fixing via keyholes.
Rated voltage: 100 - 230 V~, +10 % / -10 %
Secondary: 5 V-, +5 % / -5 %
2
1
3
Busch-powerDock Insert ) ) ) ) Rated frequency: 50 Hz - 60 Hz
4
For charging and supplying mobile terminal devices. Suitable for: In case one output is used:
With quick charging function for devices compatible Rated current: 1400 mA
with quick-chargeTM. Suitable for: In case two output are used:
Makes possible fast charging of the mobile terminal Rated current: 700 mA
device. Protection class (Device): IP 20, SELV
Rated voltage: 100 - 230 V~, +10 % / -10 % Temperature range (Device): 5 °C to 40 °C
Rated frequency: 50 Hz - 60 Hz Dimensions: (L x W x D): 71 mm x 71 mm x 43 mm 11
Suitable for: Apple terminal device Mounting depth: 32 mm
Rated current: 2.1 A 6472 U-500 2CKA006400A0002 1
Output voltage: 5 V- 1) No claw. Screw-fixing via keyholes.
Suitable for: Terminal device with USB-C connection 2) No data transfer.
Rated current: 2.1 A 3) For terminal devices with standardized charging interface according to DIN EN
Output voltage: 5 V- 62684.
Suitable for: Terminal device with quick-charge support 4) Use dust cover 2098 when cleaning the device.
and USB-C connection and quick-charge TM function.
Rated current: 2 A
3
2
1
Output voltage: 9 V- USB charging station insert ) ) )
Protection class (Device): IP 20, SELV For supply and support of mobile devices via USB-cable.
Temperature range (Device): 5 °C to 35 °C With micro USB connecting cable.
Dimensions: (L x W x D): 71 mm x 71 mm x 32 mm Connecting cable joined captive to insert.
Mounting depth: 32 mm Usable cable length (incl. micro USB plug) approx.
22 cm.
6473 U-500 2CKA006400A0039 1/10 With electronic short-circuit protection.
1) No claw. Screw-fixing via keyholes. With electronic overload protection.
2) The USB-C connection of the Busch-powerDock uses the quick charging function Rated voltage: 100 - 230 V~, +10 % / -10 %
according to Qualcomm® Quick chargeTM 2.0 standard. Secondary: 5 V-, +5 % / -5 %
3) In rare cases the manufacturers of USB-C terminal devices support the quick- Rated frequency: 50 Hz - 60 Hz
charging function independent of this standard only in case of charging devices Rated current: 1400 mA
that are the same as those of other manufacturers.
4) In these cases the quick-charging function of the terminal device is not enabled. Protection class (Device): IP 20, SELV
Temperature range (Device): 5 °C to 40 °C
Dimensions: (L x W x D): 71 mm x 71 mm x 35 mm
Busch-powerDock Charging cradle with Apple lightning Mounting depth: 32 mm
connection ) 6474 U-500 2CKA006400A0033 1/10
1
For Busch-powerDock insert 6473 U.
For attaching mobile terminal devices with lightning 1) No claw. Screw-fixing via keyholes.
connection. 2) No data transfer.
3) For terminal devices with standardized charging interface according to DIN EN
For iPhone XS Max, iPhone XS, iPhone XR, iPhone X. 62684.
For iPhone 8 Plus, iPhone 8.
For iPhone 7 Plus, iPhone 7.
For iPhone SE.
For iPhone 6s Plus, iPhone 6s, iPhone 6 Plus, iPhone 6.
For iPhone 5s, iPhone 5c, iPhone 5.
For iPod touch (6th generation), iPod touch (5th
generation), iPod nano (7th generation).
Suitable for use with protective covers certified by
Apple.
Temperature range (Device): 5 °C to 35 °C
Dimensions: (L x W x D): 54 mm x 54 mm x 36 mm
6473-500 2CKA006400A0081 1/10
1) Not released for use with the iPad.
