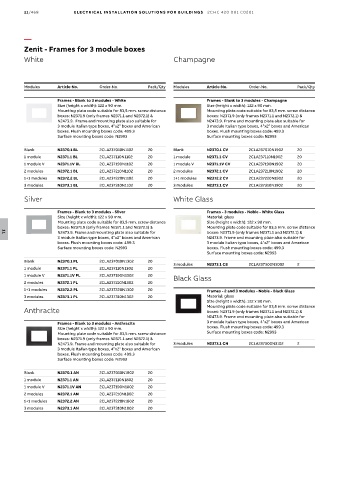

Page 1574 - Din prodcuts 2020

11/468 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Zenit - Frames for 3 module boxes
White Champagne

Modules Article-No. Order-No. Pack/Qty Modules Article-No. Order-No. Pack/Qty

Frames - Blank to 3 modules - White Frames - Blank to 3 modules - Champagne
Size (height x width): 122 x 90 mm. Size (height x width): 122 x 90 mm.
Mounting plate code suitable for 83,5 mm. screw distance Mounting plate code suitable for 83,5 mm. screw distance
boxes: N2371.9 (only frames N2371.1 and N2372.1) & boxes: N2371.9 (only frames N2371.1 and N2372.1) &
N2473.9. Frame and mounting plate also suitable for N2473.9. Frame and mounting plate also suitable for
3 module Italian type boxes, 4”x2” boxes and American 3 module Italian type boxes, 4”x2” boxes and American
boxes. Flush mounting boxes code: 499.3 boxes. Flush mounting boxes code: 499.3
Surface mounting boxes code: N2993 Surface mounting boxes code: N2993

Blank N2370.1 BL 2CLA237010N1102 20 Blank N2370.1 CV 2CLA237010N1902 20
1 module N2371.1 BL 2CLA237110N1102 20 1 module N2371.1 CV 2CLA237110N1902 20
1 module V N2371.1V BL 2CLA237190N1102 20 1 module V N2371.1V CV 2CLA237190N1902 20
2 modules N2372.1 BL 2CLA237210N1102 20 2 modules N2372.1 CV 2CLA237210N1902 20
1+1 modules N2372.2 BL 2CLA237220N1102 20 1+1 modules N2372.2 CV 2CLA237220N1902 20
3 modules N2373.1 BL 2CLA237310N1102 20 3 modules N2373.1 CV 2CLA237310N1902 20

Silver White Glass

Frames - Blank to 3 modules - Silver Frames - 3 modules - Noble - White Glass
Size (height x width): 122 x 90 mm. Material: glass
Mounting plate code suitable for 83,5 mm. screw distance Size (height x width): 122 x 90 mm.
boxes: N2371.9 (only frames N2371.1 and N2372.1) & Mounting plate code suitable for 83,5 mm. screw distance
N2473.9. Frame and mounting plate also suitable for boxes: N2371.9 (only frames N2371.1 and N2372.1) &
11
3 module Italian type boxes, 4”x2” boxes and American N2473.9. Frame and mounting plate also suitable for
boxes. Flush mounting boxes code: 499.3 3 module Italian type boxes, 4”x2” boxes and American
Surface mounting boxes code: N2993 boxes. Flush mounting boxes code: 499.3
Surface mounting boxes code: N2993
Blank N2370.1 PL 2CLA237010N1302 20
3 modules N2373.1 CB 2CLA237300N3002 2
1 module N2371.1 PL 2CLA237110N1302 20
1 module V N2371.1V PL 2CLA237190N1302 20 Black Glass
2 modules N2372.1 PL 2CLA237210N1302 20
1+1 modules N2372.2 PL 2CLA237220N1302 20 Frames - 2 and 3 modules - Noble - Black Glass
3 modules N2373.1 PL 2CLA237310N1302 20 Material: glass
Size (height x width): 122 x 90 mm.
Mounting plate code suitable for 83,5 mm. screw distance
Anthracite boxes: N2371.9 (only frames N2371.1 and N2372.1) &
N2473.9. Frame and mounting plate also suitable for
Frames - Blank to 3 modules - Anthracite 3 module Italian type boxes, 4”x2” boxes and American
Size (height x width): 122 x 90 mm. boxes. Flush mounting boxes code: 499.3
Mounting plate code suitable for 83,5 mm. screw distance Surface mounting boxes code: N2993
boxes: N2371.9 (only frames N2371.1 and N2372.1) &
N2473.9. Frame and mounting plate also suitable for 3 modules N2373.1 CN 2CLA237300N3102 2
3 module Italian type boxes, 4”x2” boxes and American
boxes. Flush mounting boxes code: 499.3
Surface mounting boxes code: N2993

Blank N2370.1 AN 2CLA237010N1802 20
1 module N2371.1 AN 2CLA237110N1802 20
1 module V N2371.1V AN 2CLA237190N1802 20
2 modules N2372.1 AN 2CLA237210N1802 20
1+1 modules N2372.2 AN 2CLA237220N1802 20
3 modules N2373.1 AN 2CLA237310N1802 20
