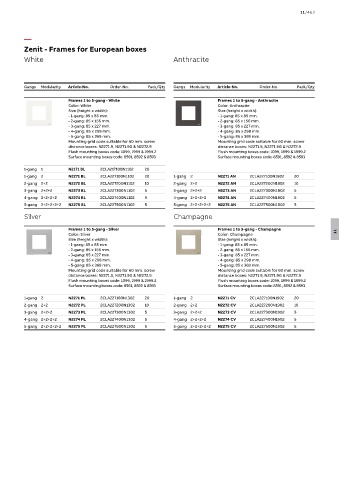

Page 1569 - Din prodcuts 2020

11/463

—
Zenit - Frames for European boxes
White Anthracite

Gangs Modularity Article-No. Order-No. Pack/Qty Gangs Modularity Article-No. Order-No. Pack/Qty

Frames 1 to 5-gang - White Frames 1 to 5-gang - Anthracite
Color: White Color: Anthracite
Size (height x width): Size (height x width):
- 1-gang: 85 x 85 mm. - 1-gang: 85 x 85 mm.
- 2-gang: 85 x 156 mm. - 2-gang: 85 x 156 mm.
- 3-gang: 85 x 227 mm. - 3-gang: 85 x 227 mm.
- 4-gang: 85 x 298 mm. - 4-gang: 85 x 298 mm.
- 5-gang: 85 x 369 mm. - 5-gang: 85 x 369 mm.
Mounting grid code suitable for 60 mm. screw Mounting grid code suitable for 60 mm. screw
distance boxes: N2271.9, N2271.9G & N2272.9 distance boxes: N2271.9, N2271.9G & N2272.9
Flush mounting boxes code: 1099, 1999 & 1999.2 Flush mounting boxes code: 1099, 1999 & 1999.2
Surface mounting boxes code: 8591, 8592 & 8593 Surface mounting boxes code: 8591, 8592 & 8593
1-gang 1 N2171 BL 2CLA217100N1102 20
1-gang 2 N2271 BL 2CLA227100N1102 20 1-gang 2 N2271 AN 2CLA227100N1802 20
2-gang 2+2 N2272 BL 2CLA227200N1102 10 2-gang 2+2 N2272 AN 2CLA227200N1802 10
3-gang 2+2+2 N2273 BL 2CLA227300N1102 5 3-gang 2+2+2 N2273 AN 2CLA227300N1802 5
4-gang 2+2+2+2 N2274 BL 2CLA227400N1102 5 4-gang 2+2+2+2 N2274 AN 2CLA227400N1802 5
5-gang 2+2+2+2+2 N2275 BL 2CLA227500N1102 5 5-gang 2+2+2+2+2 N2275 AN 2CLA227500N1802 5

Silver Champagne

Frames 1 to 5-gang - Silver Frames 1 to 5-gang - Champagne
Color: Silver Color: Champagne 11
Size (height x width): Size (height x width):
- 1-gang: 85 x 85 mm. - 1-gang: 85 x 85 mm.
- 2-gang: 85 x 156 mm. - 2-gang: 85 x 156 mm.
- 3-gang: 85 x 227 mm. - 3-gang: 85 x 227 mm.
- 4-gang: 85 x 298 mm. - 4-gang: 85 x 298 mm.
- 5-gang: 85 x 369 mm. - 5-gang: 85 x 369 mm.
Mounting grid code suitable for 60 mm. screw Mounting grid code suitable for 60 mm. screw
distance boxes: N2271.9, N2271.9G & N2272.9 distance boxes: N2271.9, N2271.9G & N2272.9
Flush mounting boxes code: 1099, 1999 & 1999.2 Flush mounting boxes code: 1099, 1999 & 1999.2
Surface mounting boxes code: 8591, 8592 & 8593 Surface mounting boxes code: 8591, 8592 & 8593

1-gang 2 N2271 PL 2CLA227100N1302 20 1-gang 2 N2271 CV 2CLA227100N1902 20
2-gang 2+2 N2272 PL 2CLA227200N1302 10 2-gang 2+2 N2272 CV 2CLA227200N1902 10
3-gang 2+2+2 N2273 PL 2CLA227300N1302 5 3-gang 2+2+2 N2273 CV 2CLA227300N1902 5
4-gang 2+2+2+2 N2274 PL 2CLA227400N1302 5 4-gang 2+2+2+2 N2274 CV 2CLA227400N1902 5
5-gang 2+2+2+2+2 N2275 PL 2CLA227500N1302 5 5-gang 2+2+2+2+2 N2275 CV 2CLA227500N1902 5
