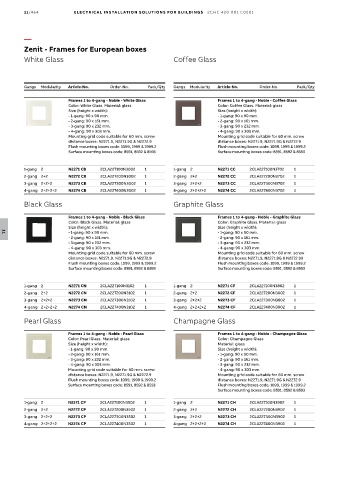

11/464 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Zenit - Frames for European boxes
White Glass Coffee Glass

Gangs Modularity Article-No. Order-No. Pack/Qty Gangs Modularity Article-No. Order-No. Pack/Qty

Frames 1 to 4-gang - Noble - White Glass Frames 1 to 4-gang - Noble - Coffee Glass
Color: White Glass. Material: glass Color: Coffee Glass. Material: glass
Size (height x width): Size (height x width):
- 1-gang: 90 x 90 mm. - 1-gang: 90 x 90 mm.
- 2-gang: 90 x 161 mm. - 2-gang: 90 x 161 mm.
- 3-gang: 90 x 232 mm. - 3-gang: 90 x 232 mm.
- 4-gang: 90 x 303 mm. - 4-gang: 90 x 303 mm.
Mounting grid code suitable for 60 mm. screw Mounting grid code suitable for 60 mm. screw
distance boxes: N2271.9, N2271.9G & N2272.9 distance boxes: N2271.9, N2271.9G & N2272.9
Flush mounting boxes code: 1099, 1999 & 1999.2 Flush mounting boxes code: 1099, 1999 & 1999.2
Surface mounting boxes code: 8591, 8592 & 8593 Surface mounting boxes code: 8591, 8592 & 8593

1-gang 2 N2271 CB 2CLA227100N3002 1 1-gang 2 N2271 CC 2CLA227100N3702 1
2-gang 2+2 N2272 CB 2CLA227200N3002 1 2-gang 2+2 N2272 CC 2CLA227200N3702 1
3-gang 2+2+2 N2273 CB 2CLA227300N3002 1 3-gang 2+2+2 N2273 CC 2CLA227300N3702 1
4-gang 2+2+2+2 N2274 CB 2CLA227400N3002 1 4-gang 2+2+2+2 N2274 CC 2CLA227400N3702 1

Black Glass Graphite Glass

Frames 1 to 4-gang - Noble - Black Glass Frames 1 to 4-gang - Noble - Graphite Glass
Color: Black Glass. Material: glass Color: Graphite Glass. Material: glass
Size (height x width): Size (height x width):
- 1-gang: 90 x 90 mm. - 1-gang: 90 x 90 mm.
11
- 2-gang: 90 x 161 mm. - 2-gang: 90 x 161 mm.
- 3-gang: 90 x 232 mm. - 3-gang: 90 x 232 mm.
- 4-gang: 90 x 303 mm. - 4-gang: 90 x 303 mm.
Mounting grid code suitable for 60 mm. screw Mounting grid code suitable for 60 mm. screw
distance boxes: N2271.9, N2271.9G & N2272.9 distance boxes: N2271.9, N2271.9G & N2272.99
Flush mounting boxes code: 1099, 1999 & 1999.2 Flush mounting boxes code: 1099, 1999 & 1999.2
Surface mounting boxes code: 8591, 8592 & 8593 Surface mounting boxes code: 8591, 8592 & 8593

1-gang 2 N2271 CN 2CLA227100N3102 1 1-gang 2 N2271 CF 2CLA227100N3802 1
2-gang 2+2 N2272 CN 2CLA227200N3102 1 2-gang 2+2 N2272 CF 2CLA227200N3802 1
3-gang 2+2+2 N2273 CN 2CLA227300N3102 1 3-gang 2+2+2 N2273 CF 2CLA227300N3802 1
4-gang 2+2+2+2 N2274 CN 2CLA227400N3102 1 4-gang 2+2+2+2 N2274 CF 2CLA227400N3802 1
Pearl Glass Champagne Glass

Frames 1 to 4-gang - Noble - Pearl Glass Frames 1 to 4-gang - Noble - Champagne Glass
Color: Pearl Glass. Material: glass Color: Champagne Glass
Size (height x width): Material: glass
- 1-gang: 90 x 90 mm. Size (height x width):
- 2-gang: 90 x 161 mm. - 1-gang: 90 x 90 mm.
- 3-gang: 90 x 232 mm. - 2-gang: 90 x 161 mm.
- 4-gang: 90 x 303 mm. - 3-gang: 90 x 232 mm.
Mounting grid code suitable for 60 mm. screw - 4-gang: 90 x 303 mm.
distance boxes: N2271.9, N2271.9G & N2272.9 Mounting grid code suitable for 60 mm. screw
Flush mounting boxes code: 1099, 1999 & 1999.2 distance boxes: N2271.9, N2271.9G & N2272.9
Surface mounting boxes code: 8591, 8592 & 8593 Flush mounting boxes code: 1099, 1999 & 1999.2
Surface mounting boxes code: 8591, 8592 & 8593

1-gang 2 N2271 CP 2CLA227100N3502 1 1-gang 2 N2271 CH 2CLA227100N3902 1
2-gang 2+2 N2272 CP 2CLA227200N3502 1 2-gang 2+2 N2272 CH 2CLA227200N3902 1
3-gang 2+2+2 N2273 CP 2CLA227300N3502 1 3-gang 2+2+2 N2273 CH 2CLA227300N3902 1
4-gang 2+2+2+2 N2274 CP 2CLA227400N3502 1 4-gang 2+2+2+2 N2274 CH 2CLA227400N3902 1
