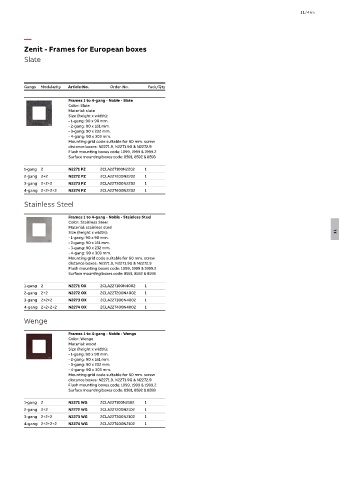

Page 1571 - Din prodcuts 2020

11/465

—
Zenit - Frames for European boxes
Slate

Gangs Modularity Article-No. Order-No. Pack/Qty

Frames 1 to 4-gang - Noble - Slate
Color: Slate
Material: slate
Size (height x width):
- 1-gang: 90 x 90 mm.
- 2-gang: 90 x 161 mm.
- 3-gang: 90 x 232 mm.
- 4-gang: 90 x 303 mm.
Mounting grid code suitable for 60 mm. screw
distance boxes: N2271.9, N2271.9G & N2272.9
Flush mounting boxes code: 1099, 1999 & 1999.2
Surface mounting boxes code: 8591, 8592 & 8593
1-gang 2 N2271 PZ 2CLA227100N2202 1
2-gang 2+2 N2272 PZ 2CLA227200N2202 1
3-gang 2+2+2 N2273 PZ 2CLA227300N2202 1
4-gang 2+2+2+2 N2274 PZ 2CLA227400N2202 1

Stainless Steel

Frames 1 to 4-gang - Noble - Stainless Steel
Color: Stainless Steel
Material: stainless steel
Size (height x width): 11
- 1-gang: 90 x 90 mm.
- 2-gang: 90 x 161 mm.
- 3-gang: 90 x 232 mm.
- 4-gang: 90 x 303 mm.
Mounting grid code suitable for 60 mm. screw
distance boxes: N2271.9, N2271.9G & N2272.9
Flush mounting boxes code: 1099, 1999 & 1999.2
Surface mounting boxes code: 8591, 8592 & 8593

1-gang 2 N2271 OX 2CLA227100N4002 1
2-gang 2+2 N2272 OX 2CLA227200N4002 1
3-gang 2+2+2 N2273 OX 2CLA227300N4002 1
4-gang 2+2+2+2 N2274 OX 2CLA227400N4002 1
Wenge

Frames 1 to 4-gang - Noble - Wenge
Color: Wenge
Material: wood
Size (height x width):
- 1-gang: 90 x 90 mm.
- 2-gang: 90 x 161 mm.
- 3-gang: 90 x 232 mm.
- 4-gang: 90 x 303 mm.
Mounting grid code suitable for 60 mm. screw
distance boxes: N2271.9, N2271.9G & N2272.9
Flush mounting boxes code: 1099, 1999 & 1999.2
Surface mounting boxes code: 8591, 8592 & 8593

1-gang 2 N2271 WG 2CLA227100N2102 1
2-gang 2+2 N2272 WG 2CLA227200N2102 1
3-gang 2+2+2 N2273 WG 2CLA227300N2102 1
4-gang 2+2+2+2 N2274 WG 2CLA227400N2102 1
