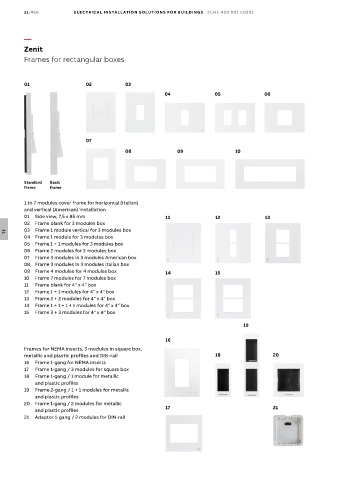

11/466 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Zenit
Frames for rectangular boxes

01 02 03
04 05 06

07
08 09 10

Standard Basic
frame frame

1 to 7 modules cover frame for horizontal (Italian)
and vertical (American) installation
01 Side view, 7,5 x 85 mm 11 12 13
02 Frame blank for 3 modules box
03 Frame 1 module vertical for 3 modules box
11
04 Frame 1 module for 3 modules box
05 Frame 1 + 1 modules for 3 modules box
06 Frame 2 modules for 3 modules box
07 Frame 3 modules in 3 modules American box
08 Frame 3 modules in 3 modules Italian box
09 Frame 4 modules for 4 modules box 14 15
10 Frame 7 modules for 7 modules box
11 Frame blank for 4“ x 4“ box
12 Frame 1 + 1 modules for 4“ x 4“ box
13 Frame 2 + 2 modules for 4“ x 4“ box
14 Frame 1 + 1 + 1 + 1 modules for 4“ x 4“ box
15 Frame 3 + 3 modules for 4“ x 4“ box

19

16
Frames for NEMA inserts, 3 modules in square box,
metallic and plastic profiles and DIN-rail 18 20
16 Frame 1-gang for NEMA inserts
17 Frame 1-gang / 3 modules for square box
18 Frame 1-gang / 1 module for metallic
and plastic profiles
19 Frame 2-gang / 1 + 1 modules for metallic
and plastic profiles
20 Frame 1-gang / 2 modules for metallic
and plastic profiles 17 21
21 Adaptor 1-gang / 2 modules for DIN-rail
