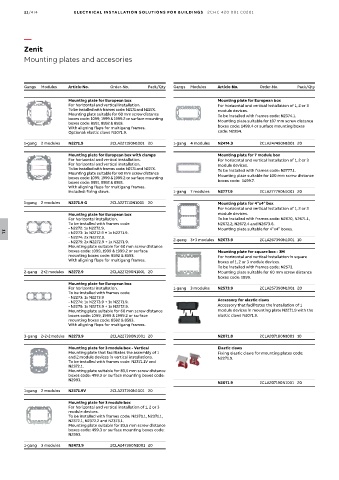

11/474 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Zenit
Mounting plates and accesories

Gangs Modules Article-No. Order-No. Pack/Qty Gangs Modules Article-No. Order-No. Pack/Qty

Mounting plate for European box Mounting plate for European box
For horizontal and vertical installation. For horizontal and vertical installation of 1, 2 or 3
To be installed with frames code: N2171 and N227X. module devices.
Mounting plate suitable for 60 mm screw distance To be installed with frames code: N2374.1.
boxes code: 1099, 1999 & 1999.2 or surface mounting Mounting plate suitable for 107 mm screw distance
boxes code: 8591, 8592 & 8593.
With aligning flaps for multigang frames. boxes code: 1499.4 or surface mounting boxes
Optional: elastic claws N2071.9. code: N2994.
1-gang 2 modules N2271.9 2CLA227190N1001 20 1-gang 4 modules N2474.9 2CLA247490N1001 20
Mounting plate for European box with clamps Mounting plate for 7 module box
For horizontal and vertical installation. For horizontal and vertical installation of 1, 2 or 3
For horizontal and vertical installation. module devices.
To be installed with frames code: N2171 and N227X. To be installed with frames code: N2777.1.
Mounting plate suitable for 60 mm screw distance Mounting plate suitable for 100 mm screw distance
boxes code: 1099, 1999 & 1999.2 or surface mounting
boxes code: 8591, 8592 & 8593. boxes code: 1499.7.
With aligning flaps for multigang frames.
Included: fixing claws. 1-gang 7 modules N2777.9 2CLA277790N1001 20
1-gang 2 modules N2271.9 G 2CLA227110N1001 20 Mounting plate for 4”x4” box
For horizontal and vertical installation of 1, 2 or 3
Mounting plate for European box module devices.
For horizontal installation. To be installed with frames code: N2670, N2671.1,
To be installed with frames code: N2672.2, N2672.4 and N2673.6.
- N2272: 1x N2272.9. Mounting plate suitable for 4”x4” boxes.
- N2273: 1x N2272.9 + 1x N2271.9.
11
- N2274: 2x N2272.9.
- N2275: 2x N2272.9 + 1x N2271.9. 2-gang 3+3 modules N2673.9 2CLA267390N1001 10
Mounting plate suitable for 60 mm screw distance
boxes code: 1099, 1999 & 1999.2 or surface Mounting plate for square box - 3M
mounting boxes code: 8592 & 8593. For horizontal and vertical installation in square
With aligning flaps for multigang frames.
boxes of 1, 2 or 3 module devices.
To be installed with frames code: N2573.
2-gang 2+2 modules N2272.9 2CLA227290N1001 20 Mounting plate suitable for 60 mm screw distance
boxes code: 1099.
Mounting plate for European box
For horizontal installation. 1-gang 3 modules N2573.9 2CLA257390N1001 20
To be installed with frames code:
- N2273: 1x N2273.9 Accessory for elastic claws
- N2274: 1x N2273.9 + 1x N2271.9.
- N2275: 1x N2273.9 + 1x N2272.9. Accessory that facilitates the installation of 1
Mounting plate suitable for 60 mm screw distance module devices in mounting plate N2271.9 with the
boxes code: 1099, 1999 & 1999.2 or surface elastic claws N2071.9.
mounting boxes code: 8592 & 8593.
With aligning flaps for multigang frames.
3-gang 2+2+2 modules N2273.9 2CLA227390N1001 20 N2071.8 2CLA207180N1001 10

Mounting plate for 3 module box - Vertical Elastic claws
Mounting plate that facilitates the assembly of 1 Fixing elastic claws for mounting plates code:
and 2 module devices in vertical installations. N2271.9.
To be installed with frames code: N2371.1V and
N2372.1.
Mounting plate suitable for 83,5 mm screw distance
boxes code: 499.3 or surface mounting boxes code:
N2993.
N2071.9 2CLA207190N1001 20
1-gang 2 modules N2371.9V 2CLA237190N1001 20

Mounting plate for 3 module box
For horizontal and vertical installation of 1, 2 or 3
module devices.
To be installed with frames code: N2370.1, N2371.1,
N2372.1, N2372.2 and N2373.1.
Mounting plate suitable for 83,5 mm screw distance
boxes code: 499.3 or surface mounting boxes code:
N2993.
1-gang 3 modules N2473.9 2CLA247390N1001 20
