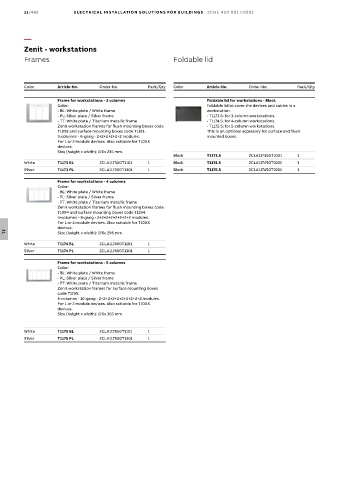

Page 1588 - Din prodcuts 2020

11/482 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Zenit - workstations
Frames Foldable lid

Color Article-No. Order-No. Pack/Qty Color Article-No. Order-No. Pack/Qty

Frame for workstations - 3 columns Foldable lid for workstations - Black
Color: Foldable lid to cover the devices and cables in a
- BL: White plate / White frame workstation:
- PL: Silver plate / Silver frame - T1173.5: for 3-column workstations.
- TT: White plate / Titanium metallic frame - T1174.5: for 4-column workstations.
Zenit workstation frames for flush mounting boxes code - T1175.5: for 5-column workstations.
T1093 and surface mounting boxes code T1193. This is an optional accessory for surface and flush
3-columns - 6-gang - 2+2+2+2+2+2 modules. mounted boxes.
For 1 or 2 module devices. Also suitable for T10XX
devices.
Size (height x width): 176x 235 mm.
Black T1173.5 2CLA117350T1001 1
White T1173 BL 2CLA117300T1101 1 Black T1174.5 2CLA117450T1001 1
Silver T1173 PL 2CLA117300T1301 1 Black T1175.5 2CLA117450T1001 1
Frame for workstations - 4 columns
Color:
- BL: White plate / White frame
- PL: Silver plate / Silver frame
- TT: White plate / Titanium metallic frame
Zenit workstation frames for flush mounting boxes code
T1094 and surface mounting boxes code T1194.
4-columns - 8-gang - 2+2+2+2+2+2+2+2 modules.
For 1 or 2 module devices. Also suitable for T10XX
devices.
Size (height x width): 176x 295 mm.
11
White T1174 BL 2CLA117400T1101 1
Silver T1174 PL 2CLA117400T1301 1

Frame for workstations - 5 columns
Color:
- BL: White plate / White frame
- PL: Silver plate / Silver frame
- TT: White plate / Titanium metallic frame
Zenit workstation frames for surface mounting boxes
code T1195.
5-columns - 10-gang - 2+2+2+2+2+2+2+2+2+2 modules.
For 1 or 2 module devices. Also suitable for T10XX
devices.
Size (height x width): 176x 355 mm.

White T1175 BL 2CLA117500T1101 1
Silver T1175 PL 2CLA117500T1301 1
