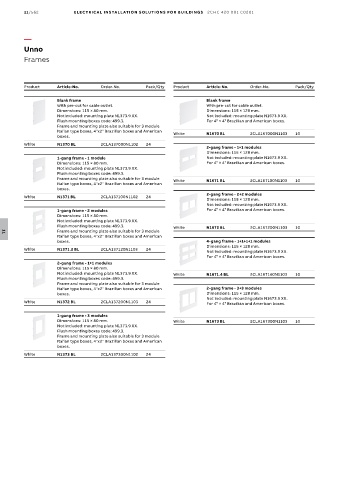

Page 1668 - Din prodcuts 2020

11/562 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Unno
Frames

Product Article-No. Order-No. Pack/Qty Product Article-No. Order-No. Pack/Qty

Blank frame Blank frame
With pre-cut for cable outlet. With pre-cut for cable outlet.
Dimensions: 115 × 80 mm. Dimensions: 115 × 128 mm.
Not included: mounting plate N1373.9 XX. Not included: mounting plate N1673.9 XX.
Flush mounting boxes code: 499.3. For 4" × 4" Brazilian and American boxes.
Frame and mounting plate also suitable for 3 module
Italian type boxes, 4"x2" Brazilian boxes and American
boxes. White N1670 BL 2CLA167000N1103 10
White N1370 BL 2CLA137000N1102 24
2-gang frame - 1+1 modules
Dimensions: 115 × 128 mm.
1-gang frame - 1 module Not included: mounting plate N1673.9 XX.
Dimensions: 115 × 80 mm. For 4" × 4" Brazilian and American boxes.
Not included: mounting plate N1373.9 XX.
Flush mounting boxes code: 499.3.
Frame and mounting plate also suitable for 3 module White N1671 BL 2CLA167100N1103 10
Italian type boxes, 4"x2" Brazilian boxes and American
boxes.
2-gang frame - 2+2 modules
White N1371 BL 2CLA137100N1102 24
Dimensions: 115 × 128 mm.
Not included: mounting plate N1673.9 XX.
1-gang frame - 2 modules For 4" × 4" Brazilian and American boxes.
Dimensions: 115 × 80 mm.
Not included: mounting plate N1373.9 XX.
Flush mounting boxes code: 499.3. White N1672 BL 2CLA167200N1103 10
Frame and mounting plate also suitable for 3 module
11
Italian type boxes, 4"x2" Brazilian boxes and American
boxes. 4-gang frame - 1+1+1+1 modules
Dimensions: 115 × 128 mm.
White N1371.2 BL 2CLA137120N1103 24 Not included: mounting plate N1673.9 XX.
For 4" × 4" Brazilian and American boxes.
2-gang frame - 1+1 modules
Dimensions: 115 × 80 mm.
Not included: mounting plate N1373.9 XX. White N1671.4 BL 2CLA167140N1103 10
Flush mounting boxes code: 499.3.
Frame and mounting plate also suitable for 3 module
Italian type boxes, 4"x2" Brazilian boxes and American 2-gang frame - 3+3 modules
boxes. Dimensions: 115 × 128 mm.
Not included: mounting plate N1673.9 XX.
White N1372 BL 2CLA137200N1103 24 For 4" × 4" Brazilian and American boxes.

1-gang frame - 3 modules
Dimensions: 115 × 80 mm. White N1673 BL 2CLA167300N1103 10
Not included: mounting plate N1373.9 XX.
Flush mounting boxes code: 499.3.
Frame and mounting plate also suitable for 3 module
Italian type boxes, 4"x2" Brazilian boxes and American
boxes.
White N1373 BL 2CLA137300N1102 24
