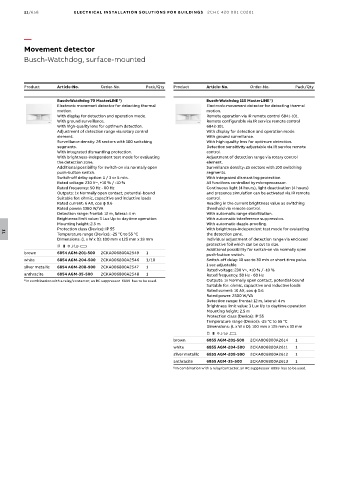

Movement detector
Busch-Watchdog, surface-mounted

Product Article-No. Order-No. Pack/Qty Product Article-No. Order-No. Pack/Qty

Busch-Watchdog 70 MasterLINE ) Busch-Watchdog 110 MasterLINE )
1
1
Electronic movement detector for detecting thermal Electronic movement detector for detecting thermal
motion. motion.
With display for detection and operation mode. Remote operation via IR remote control 6841-101.
With ground surveillance. Remote configurable via IR service remote control
With high-quality lens for optimum detection. 6842-101.
Adjustment of detection range via rotary control With display for detection and operation mode.
element. With ground surveillance.
Surveillance density: 25 sectors with 100 switching With high-quality lens for optimum detection.
segments. Detection sensitivity adjustable via IR service remote
With integrated dismantling protection. control.
With brightness-independent test mode for evaluating Adjustment of detection range via rotary control
the detection zone. element.
Additional possibility for switch-on via normally open Surveillance density: 25 sectors with 100 switching
push-button switch. segments.
Switch-off delay option: 1 / 3 or 5 min. With integrated dismantling protection.
Rated voltage: 230 V~, +10 % / -10 % All functions controlled by microprocessor.
Rated frequency: 50 Hz - 60 Hz Continuous light (4 hours), light deactivation (4 hours)
Outputs: 1x Normally open contact, potential-bound and presence simulation can be activated via IR remote
Suitable for: ohmic, capacitive and inductive loads control.
Rated current: 6 AX, cos φ 0.6 Reading in the current brightness value as switching
Rated power: 1380 W/VA threshold via remote control.
Detection range: frontal: 12 m, lateral: 4 m With automatic range stabilization.
Brightness limit value: 3 Lux Up to daytime operation With automatic interference suppression.
Mounting height: 2.5 m With automatic dazzle-proofing.
Protection class (Device): IP 55 With brightness-independent test mode for evaluating
Temperature range (Device): -25 °C to 55 °C the detection zone.
11
Dimensions: (L x W x D): 100 mm x 125 mm x 33 mm Individual adjustment of detection range via enclosed
protective foil which can be cut to size.

Additional possibility for switch-on via normally open
brown 6854 AGM-201-500 2CKA006800A2549 1 push-button switch.
white 6854 AGM-204-500 2CKA006800A2546 1/10 Switch-off delay: 10 sec to 30 min or short-time pulse
1 sec adjustable.
silver metallic 6854 AGM-208-500 2CKA006800A2547 1
Rated voltage: 230 V~, +10 % / -10 %
anthracite 6854 AGM-35-500 2CKA006800A2548 1 Rated frequency: 50 Hz - 60 Hz
1) In combination with a relay/contactor, an RC suppressor 6899 has to be used. Outputs: 1x Normally open contact, potential-bound
Suitable for: ohmic, capacitive and inductive loads
Rated current: 10 AX, cos φ 0.6
Rated power: 2300 W/VA
Detection range: frontal: 12 m, lateral: 4 m
Brightness limit value: 3 Lux Up to daytime operation
Mounting height: 2.5 m
Protection class (Device): IP 55
Temperature range (Device): -25 °C to 55 °C
Dimensions: (L x W x D): 100 mm x 125 mm x 33 mm

brown 6855 AGM-201-500 2CKA006800A2614 1
white 6855 AGM-204-500 2CKA006800A2611 1
silver metallic 6855 AGM-208-500 2CKA006800A2612 1
anthracite 6855 AGM-35-500 2CKA006800A2613 1
1) In combination with a relay/contactor, an RC suppressor 6899 has to be used.
