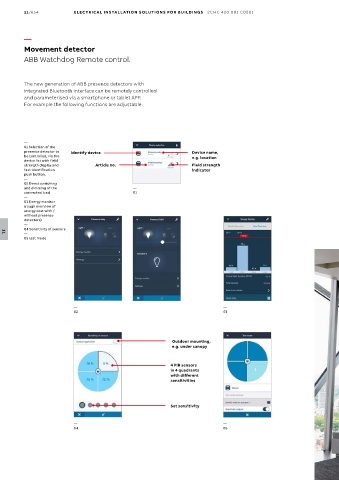

11/654 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Movement detector
ABB Watchdog Remote control.

The new generation of ABB presence detectors with
integrated Bluetooth interface can be remotely controlled
and parameterised via a smartphone or tablet APP.
For example the following functions are adjustable:

—
01 Selection of the
presence detector to Identify device Device name,
be controlled, via the e.g. location
device list with field
strength display and Article no. Field strength
fast identification indicator
push button.
—
02 Direct switching
and dimming of the —
connected load 01
—
03 Energy monitor
(rough overview of
energy cost with /
without presence
detectors)
—
04 Sensitivity of sensors
—
11
05 test mode

— —
02 03

Outdoor mounting,
e.g. under canopy

4 PIR sensors
in 4 quadrants
with different
sensitivities

Set sensitivity

— —
04 05
