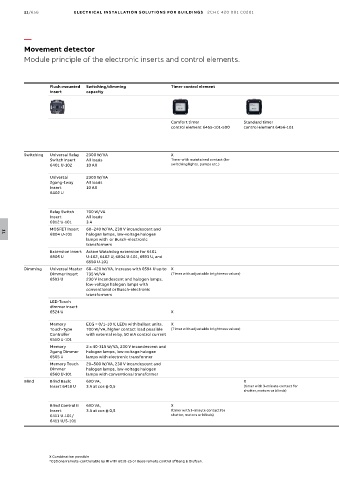

Movement detector
Module principle of the electronic inserts and control elements.

Flush-mounted Switching/dimming Timer control element Control element
insert capacity

Comfort timer Standard timer Busch-Watchdog Busch-Watchdog Busch-Watchdog Busch-Remote Busch-Remote Busch-Blind Control Element Busch-Touch
control element 6455-101-500 control element 6456-101 sensor comfort sensor standard sensor control IR control IR control II for Memory dimmer
All Weather 44 (multilens) 6810-21x control element control element control element 2gang Dimmer control element
with combi- 6800-xxx- 6067-xxx-xxx 6066-xxx-xxx 6430-xxx-xxx 6545-xxx 6543-xxx-10x
lense 104(M)
6800-3x-102C
Switching Universal Relay 2300 W/VA X X X*) X
Switch Insert All loads Timer with maintained contact (for (only 6401 U-102 for (latching relay) (latching relay)
6401 U-102 10 AX switching lights, pumps etc.) outdoor use, frost-
proof up to –25°C) X X
Universal 2300 W/VA X X X*) X*) X X
2gang-1way All loads (Output 2 with (Output 2 with (latching relay, (electronic serial (electronic serial (latching relay,
Insert 10 AX switch-on/ switch-on/ 2 normally open switch, remote- switch, 2 normally 2 normally open
6402 U switch-off delay switch-off delay contacts, separate controllable, open contacts) contacts, separate
in relation to in relation to slave contact 2 normally open slave contact
Output 1) Output 1) for light and contacts) for light and
fan control) fan control)
Relay Switch 700 W/VA
Insert All loads X X
6812 U-101 3 A
MOSFET Insert 60–240 W/VA, 230 V incandescent and
6804 U-101 halogen lamps, low-voltage halogen
11
lamps with or Busch-electronic X X
transformers
Extension Insert Active Watchdog extension for 6401
6805 U U-102, 6402 U, 6804 U-101, 6593 U, and X X
6550 U-101
Dimming Universal Master 60–420 W/VA, increase with 6594 U up to X X
Dimmer Insert 735 W/VA (Timer with adjustable brightness values) (Soft OFF mode:
6593 U 230 V incandescent and halogen lamps, dim down/switch
low-voltage halogen lamps with off within the final X X X
conventional or Busch-electronic minute/switch-
off warning)
transformers
LED-Touch
dimmer insert
6524 U X X X
Memory ECG = 0/1–10 V, LEDs with ballast units, X
Touch-Type 700 W/VA, higher contact load possible (Timer with adjustable brightness values)
Controller with external relay, 50 mA control current X X X X X
6550 U-101
Memory 2 x 40-315 W/VA, 230 V incandescent and
2gang Dimmer halogen lamps, low-voltage halogen
6565 U lamps with electronic transformer X
Memory Touch 20–500 W/VA, 230 V incandescent and
Dimmer halogen lamps, low-voltage halogen X
6560 U-101 lamps with conventional transformer
Blind Blind Basic 690 VA, X
Insert 6418 U 3 A at cos φ 0,5 (timer with 3-minute contact for
shutter, motors or blinds) X

Blind Control II 690 VA, X
Insert 3 A at cos φ 0,5 (timer with 3-minute contact for
6411 U-101/ shutter, motors or blinds) X X
6411 U/S-101

X Combination possible
*Optional remote-controllable by IR with 6010-25 or Beo6 remote control of Bang & Olufsen.
