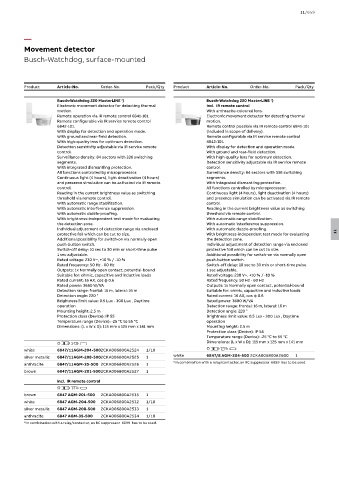

Page 1765 - Din prodcuts 2020

11/659

—
Movement detector
Busch-Watchdog, surface-mounted

Product Article-No. Order-No. Pack/Qty Product Article-No. Order-No. Pack/Qty

Busch-Watchdog 220 MasterLINE ) Busch-Watchdog 220 MasterLINE ) 1
1
Electronic movement detector for detecting thermal incl. IR remote control
motion. With anthracite-coloured lens.
Remote operation via IR remote control 6841-101. Electronic movement detector for detecting thermal
Remote configurable via IR service remote control motion.
6842-101. Remote control possible via IR remote control 6841-101
With display for detection and operation mode. (included in scope of delivery).
With ground and rear-field detection. Remote configurable via IR service remote control
With high-quality lens for optimum detection. 6842-101.
Detection sensitivity adjustable via IR service remote With display for detection and operation mode.
control. With ground and rear-field detection.
Surveillance density: 84 sectors with 336 switching With high-quality lens for optimum detection.
segments. Detection sensitivity adjustable via IR service remote
With integrated dismantling protection. control.
All functions controlled by microprocessor. Surveillance density: 84 sectors with 336 switching
Continuous light (4 hours), light deactivation (4 hours) segments.
and presence simulation can be activated via IR remote With integrated dismantling protection.
control. All functions controlled by microprocessor.
Reading in the current brightness value as switching Continuous light (4 hours), light deactivation (4 hours)
threshold via remote control. and presence simulation can be activated via IR remote
With automatic range stabilization. control.
With automatic interference suppression. Reading in the current brightness value as switching
With automatic dazzle-proofing. threshold via remote control.
With brightness-independent test mode for evaluating With automatic range stabilization.
the detection zone. With automatic interference suppression.
Individual adjustment of detection range via enclosed With automatic dazzle-proofing.
protective foil which can be cut to size. With brightness-independent test mode for evaluating 11
Additional possibility for switch-on via normally open the detection zone.
push-button switch. Individual adjustment of detection range via enclosed
Switch-off delay: 10 sec to 30 min or short-time pulse protective foil which can be cut to size.
1 sec adjustable. Additional possibility for switch-on via normally open
Rated voltage: 230 V~, +10 % / -10 % push-button switch.
Rated frequency: 50 Hz - 60 Hz Switch-off delay: 10 sec to 30 min or short-time pulse
Outputs: 1x Normally open contact, potential-bound 1 sec adjustable.
Suitable for: ohmic, capacitive and inductive loads Rated voltage: 230 V~, +10 % / -10 %
Rated current: 16 AX, cos φ 0.6 Rated frequency: 50 Hz - 60 Hz
Rated power: 3680 W/VA Outputs: 1x Normally open contact, potential-bound
Detection range: frontal: 16 m, lateral: 16 m Suitable for: ohmic, capacitive and inductive loads
Detection angle: 220 ° Rated current: 16 AX, cos φ 0.6
Brightness limit value: 0.5 Lux - 300 Lux , Daytime Rated power: 3680 W/VA
operation Detection range: frontal: 16 m, lateral: 16 m
Mounting height: 2.5 m Detection angle: 220 °
Protection class (Device): IP 55 Brightness limit value: 0.5 Lux - 300 Lux , Daytime
Temperature range (Device): -25 °C to 55 °C operation
Dimensions: (L x W x D): 115 mm x 125 mm x 141 mm Mounting height: 2.5 m
Protection class (Device): IP 55
Temperature range (Device): -25 °C to 55 °C
Dimensions: (L x W x D): 115 mm x 125 mm x 141 mm
white 6847/11AGM-204-5002CKA006800A2524 1/10
silver metallic 6847/11AGM-208-5002CKA006800A2525 1 white 6847/8 AGM-204-500 2CKA006800A2600 1
1) In combination with a relay/contactor, an RC suppressor 6899 has to be used.
anthracite 6847/11AGM-35-500 2CKA006800A2526 1
brown 6847/11AGM-201-5002CKA006800A2527 1
incl. IR remote control

brown 6847 AGM-201-500 2CKA006800A2535 1
white 6847 AGM-204-500 2CKA006800A2532 1/10
silver metallic 6847 AGM-208-500 2CKA006800A2533 1
anthracite 6847 AGM-35-500 2CKA006800A2534 1/10
1) In combination with a relay/contactor, an RC suppressor 6899 has to be used.
