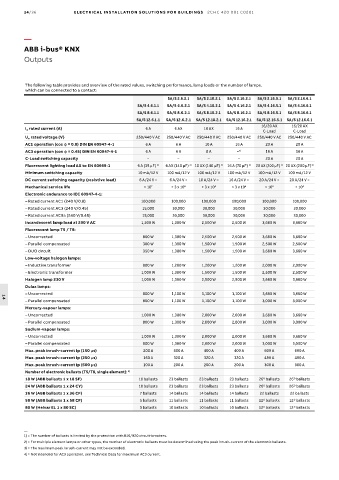

14/36 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
ABB i-bus® KNX
Outputs

The following table provides and overview of the rated values, switching performance, lamp loads or the number of lamps,
which can be connected to a contact:
SA/S 2.6.2.1 SA/S 2.10.2.1 SA/S 2.16.2.1 SA/S 2.16.5.1 SA/S 2.16.6.1
SA/S 4.6.1.1 SA/S 4.6.2.1 SA/S 4.10.2.1 SA/S 4.16.2.1 SA/S 4.16.5.1 SA/S 4.16.6.1
SA/S 8.6.1.1 SA/S 8.6.2.1 SA/S 8.10.2.1 SA/S 8.16.2.1 SA/S 8.16.5.1 SA/S 8.16.6.1
SA/S 12.6.1.1 SA/S 12.6.2.1 SA/S 12.10.2.1 SA/S 12.16.2.1 SA/S 12.16.5.1 SA/S 12.16.6.1
16/20 AX 16/20 AX
I n rated current (A) 6 A 6 AX 10 AX 16 A
C-Load C-Load
U n rated voltage (V) 250/440 V AC 250/440 V AC 250/440 V AC 250/440 V AC 250/440 V AC 250/440 V AC
AC1 operation (cos φ = 0.8) DIN EN 60947-4-1 6 A 6 A 10 A 16 A 20 A 20 A
AC3 operation (cos φ = 0.45) DIN EN 60947-4-1 6 A 6 A 8 A – 4) 16 A 16 A
C-Load switching capacity – – – – 20 A 20 A
Fluorescent lighting load AX to EN 60669-1 6 A (35 μF) 3) 6 AX (140 μF) 3) 10 AX (140 μF) 3) 16 A (70 μF) 3) 20 AX (200 μF) 3) 20 AX (200 μF) 3)
Minimum switching capacity 10 mA/12 V 100 mA/12 V 100 mA/12 V 100 mA/12 V 100 mA/12 V 100 mA/12 V
DC current switching capacity (resistive load) 6 A/24 V = 6 A/24 V = 10 A/24 V = 16 A/24 V = 20 A/24 V = 20 A/24 V =
Mechanical service life > 10 7 > 3 x 10 6 > 3 x 10 6 > 3 x 10 6 > 10 6 > 10 6
Electronic endurance to IEC 60947-4-1:
– Rated current AC1 (240 V/0.8) 100,000 100,000 100,000 100,000 100,000 100,000
– Rated current AC3 (240 V/0.45) 15,000 30,000 30,000 30,000 30,000 30,000
– Rated current AC5a (240 V/0.45) 15,000 30,000 30,000 30,000 30,000 30,000
Incandescent lamp load at 230 V AC 1,200 W 1,380 W 2,500 W 2,500 W 3,680 W 3,680 W
Fluorescent lamp T5 / T8:
– Uncorrected 800 W 1,380 W 2,500 W 2,500 W 3,680 W 3,680 W
– Parallel compensated 300 W 1,380 W 1,500 W 1,500 W 2,500 W 2,500 W
– DUO circuit 350 W 1,380 W 1,500 W 1,500 W 3,680 W 3,680 W
Low-voltage halogen lamps:
– Inductive transformer 800 W 1,200 W 1,200 W 1,200 W 2,000 W 2,000 W
– Electronic transformer 1,000 W 1,380 W 1,500 W 1,500 W 2,500 W 2,500 W
Halogen lamp 230 V 1,000 W 1,380 W 2,500 W 2,500 W 3,680 W 3,680 W
Dulux lamps:
– Uncorrected 800 W 1,100 W 1,100 W 1,100 W 3,680 W 3,680 W
– Parallel compensated 800 W 1,100 W 1,100 W 1,100 W 3,000 W 3,000 W
14
Mercury-vapour lamps:
– Uncorrected 1,000 W 1,380 W 2,000 W 2,000 W 3,680 W 3,680 W
– Parallel compensated 800 W 1,380 W 2,000 W 2,000 W 3,000 W 3,000 W
Sodium-vapour lamps:
– Uncorrected 1,000 W 1,380 W 2,000 W 2,000 W 3,680 W 3,680 W
– Parallel compensated 800 W 1,380 W 2,000 W 2,000 W 3,000 W 3,000 W
Max. peak inrush-current Ip (150 μs) 200 A 400 A 400 A 400 A 600 A 600 A
Max. peak inrush-current Ip (250 μs) 160 A 320 A 320 A 320 A 480 A 480 A
Max. peak inrush-current Ip (600 μs) 100 A 200 A 200 A 200 A 300 A 300 A
Number of electronic ballasts (T5/T8, single element): 2)
18 W (ABB ballasts 1 x 18 SF) 10 ballasts 23 ballasts 23 ballasts 23 ballasts 26 ballasts 26 ballasts
1)
1)
1)
24 W (ABB ballasts 1 x 24 CY) 10 ballasts 23 ballasts 23 ballasts 23 ballasts 26 ballasts 26 ballasts
1)
36 W (ABB ballasts 1 x 36 CF) 7 ballasts 14 ballasts 14 ballasts 14 ballasts 22 ballasts 22 ballasts
1)
58 W (ABB ballasts 1 x 58 CF) 5 ballasts 11 ballasts 11 ballasts 11 ballasts 12 ballasts 12 ballasts
1)
80 W (Helvar EL 1 x 80 SC) 3 ballasts 10 ballasts 10 ballasts 10 ballasts 12 ballasts 12 ballasts
1)
1)
—
1) = The number of ballasts is limited by the protection with B16/B20 circuit-breakers.
2) = For multiple element lamps or other types, the number of electronic ballasts must be determined using the peak inrush-current of the electronic ballasts.
3) = The maximum peak inrush-current may not be exceeded.
4) = Not intended for AC3 operation, see Technical Data for maximum AC3 current.
