ABB i-bus® KNX
Outputs – Standard Switch Actuators/Professional Switch Actuators

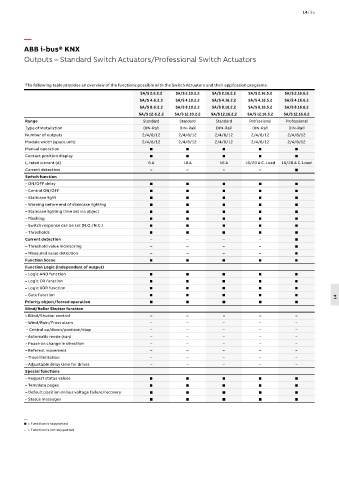

The following table provides an overview of the functions possible with the Switch Actuators and their application programs:
SA/S 2.6.2.2 SA/S 2.10.2.2 SA/S 2.16.2.2 SA/S 2.16.5.2 SA/S 2.16.6.2
SA/S 4.6.2.2 SA/S 4.10.2.2 SA/S 4.16.2.2 SA/S 4.16.5.2 SA/S 4.16.6.2
SA/S 8.6.2.2 SA/S 8.10.2.2 SA/S 8.16.2.2 SA/S 8.16.5.2 SA/S 8.16.6.2
SA/S 12.6.2.2 SA/S 12.10.2.2 SA/S 12.16.2.2 SA/S 12.16.5.2 SA/S 12.16.6.2
Range Standard Standard Standard Professional Professional
Type of installation DIN-Rail DIN-Rail DIN-Rail DIN-Rail DIN-Rail
Number of outputs 2/4/8/12 2/4/8/12 2/4/8/12 2/4/8/12 2/4/8/12
Module width (space unit) 2/4/8/12 2/4/8/12 2/4/8/12 2/4/8/12 2/4/8/12
Manual operation
Contact position display
I n rated current (A) 6 A 10 A 16 A 16/20 A C-Load 16/20 A C-Load
Current detection – – – –
Switch function
– ON/OFF delay
– Central ON/OFF
– Staircase light
– Warning before end of staircase lighting
– Staircase lighting time set via object
– Flashing
– Switch response can be set (N.O./N.C.)
– Thresholds
Current detection – – – –
– Threshold value monitoring – – – –
– Measured value detection – – – –
Function Scene
Function Logic (independent of output)
– Logic AND function
– Logic OR function
– Logic XOR function
– Gate function 14
Priority object/forced operation
Blind/Roller Shutter function
– Blind/Shutter control – – – – –
– Wind/Rain/Frost alarm – – – – –
– Central up/down/position/stop – – – – –
– Automatic mode (sun) – – – – –
– Pause on change in direction – – – – –
– Referent movement – – – – –
– Travel limitation – – – – –
– Adjustable delay time for drives – – – – –
Special functions
– Request status values
– Template pages
– Default position on bus voltage failure/recovery
– Status messages
—
= Function is supported
– = Function is not supported
