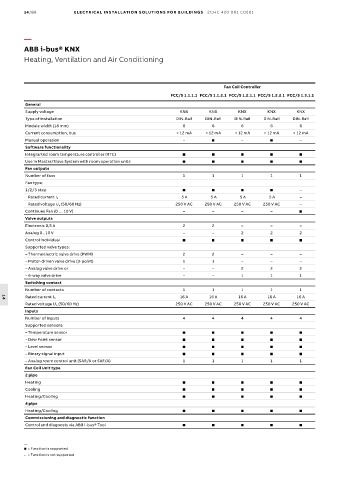

14/88 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
ABB i-bus® KNX
Heating, Ventilation and Air Conditioning

Fan Coil Controller
FCC/S 1.1.1.1 FCC/S 1.1.2.1 FCC/S 1.2.1.1 FCC/S 1.2.2.1 FCC/S 1.3.1.1
General
Supply voltage KNX KNX KNX KNX KNX
Type of installation DIN-Rail DIN-Rail DIN-Rail DIN-Rail DIN-Rail
Module width (18 mm) 6 6 6 6 6
Current consumption, bus < 12 mA < 12 mA < 12 mA < 12 mA < 12 mA
Manual operation –  –  –
Software functionality
Integrarted room temperature controller (RTC)     
Use in Master/Slave System with room operation units     
Fan outputs
Number of fans 1 1 1 1 1
Fan type:
1/2/3 step     –
5 A 5 A 5 A 5 A –
Rated current I n
Rated voltage U n (50/60 Hz) 250 V AC 250 V AC 250 V AC 250 V AC –
Continues Fan (0 … 10 V) – – – – 
Valve outputs
Electronic 0,5 A 2 2 – – –
Analog 0...10 V – – 2 2 2
Control individual     
Supported valve types:
– Thermoelectric valve drive (PWM) 2 2 – – –
– Motor-driven valve drive (3-point) 1 1 – – –
– Analog valve drive or – – 2 2 2
– 6-way valve drive – – 1 1 1
Switching contact
Number of contacts 1 1 1 1 1
Rated current In 16 A 16 A 16 A 16 A 16 A
14
Rated voltage U n (50/60 Hz) 250 V AC 250 V AC 250 V AC 250 V AC 250 V AC
Inputs
Number of inputs 4 4 4 4 4
Supported sensors:
– Temperature sensor     
– Dew Point sensor     
– Level sensor     
– Binary signal input     
– Analog room control unit (SAR/A or SAF/A) 1 1 1 1 1
Fan Coil Unit type
2 pipe
Heating     
Cooling     
Heating/Cooling     
4 pipe
Heating/Cooling     
Commissioning and diagnostic function
Control and diagnosis via ABB i-bus® Tool     

—
 = Function is supported
– = Function is not supported
