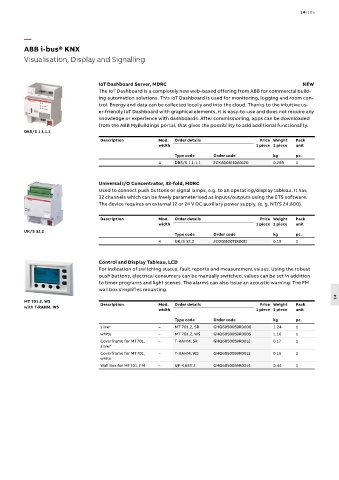

ABB i-bus® KNX
Visualisation, Display and Signalling

IoT Dashboard Server, MDRC NEW
The IoT Dashboard is a completely new web-based offering from ABB for commercial build-
ing automation solutions. This IoT Dashboard is used for monitoring, logging and room con-
trol. Energy and data can be collected locally and into the cloud. Thanks to the intuitive us-
er-friendly IoT Dashboard with graphical elements, it is easy-to-use and does not require any
knowledge or experience with dashboards. After commissioning, apps can be downloaded
from the ABB MyBuildings portal, that gives the possibility to add additional functionality.
DBS/S 1.1.1.1
Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit

Type code Order code kg pc.
4 DBS/S 1.1.1.1 2CKA008110A0120 0.289 1

Universal I/O Concentrator, 32-fold, MDRC
Used to connect push buttons or signal lamps, e.g. to an operating/display tableau. It has
32 channels which can be freely parameterised as inputs/outputs using the ETS software.
The device requires an external 12 or 24 V DC auxiliary power supply, (e. g. NT/S 24.800).

Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
UK/S 32.2
Type code Order code kg pc.
4 UK/S 32.2 2CDG110071R0011 0.18 1

Control and Display Tableau, LCD
For indication of switching status, fault reports and measurement values. Using the robust
push buttons, electrical consumers can be manually switched, values can be set in addition
to timer programs and light scenes. The alarms can also issue an acoustic warning. The FM
wall box simplifies mounting.
14
MT 701.2, WS Description Mod. Order details Price Weight Pack
with T-RAHM, WS
width 1 piece 1 piece unit
Type code Order code kg pc.
silver – MT 701.2, SR GHQ6050059R0006 1.24 1
white – MT 701.2, WS GHQ6050059R0005 1.16 1
Coverframe for MT701, – T-RAHM, SR GHQ6050059R0012 0.17 1
silver
Coverframe for MT701, – T-RAHM, WS GHQ6050059R0011 0.16 1
white
Wall Box for MT701, FM – UP-KAST 2 GHQ6050059R0014 0.44 1
