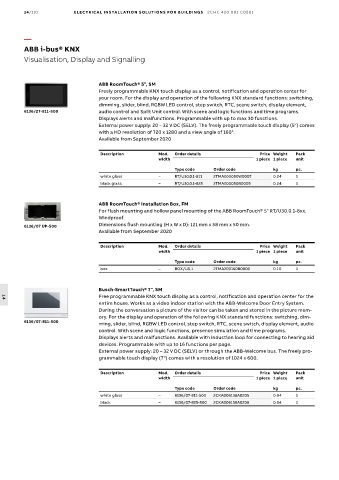

14/110 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
ABB i-bus® KNX
Visualisation, Display and Signalling

ABB RoomTouch® 5", SM
Freely programmable KNX touch display as a control, notification and operation center for
your room. For the display and operation of the following KNX standard functions: switching,
dimming, slider, blind, RGBW LED control, step switch, RTC, scene switch, display element,
6136/27-811-500 audio control and Split Unit control. With scene and logic functions and time programs.
Displays alerts and malfunctions. Programmable with up to max 30 functions.
External power supply: 20 – 32 V DC (SELV). The freely programmable touch display (5") comes
with a HD resolution of 720 x 1280 and a view angle of 160°.
Available from September 2020

Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
Type code Order code kg pc.
white glass – RT/U30.0.1-811 2TMA200050W0007 0.24 1
black glass – RT/U30.0.1-825 2TMA200050B0005 0.24 1

ABB RoomTouch® Installation Box, FM
For flush mounting and hollow panel mounting of the ABB RoomTouch® 5" RT/U30.0.1-8xx.
Windproof.
6136/07 UP-500 Dimensions flush mounting (H x W x D): 121 mm x 58 mm x 50 mm.
Available from September 2020

Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit

Type code Order code kg pc.
box – BOX/U5.1 2TMA200160B0003 0.10 1

Busch-SmartTouch® 7", SM
Free programmable KNX touch display as a control, notification and operation center for the
14
entire house. Works as a video indoor station with the ABB-Welcome Door Entry System.
During the conversation a picture of the visitor can be taken and stored in the picture mem-
ory. For the display and operation of the following KNX standard functions: switching, dim-
6136/07-811-500
ming, slider, blind, RGBW LED control, step switch, RTC, scene switch, display element, audio
control. With scene and logic functions, presence simulation and time programs.
Displays alerts and malfunctions. Available with induction loop for connecting to hearing aid
devices. Programmable with up to 16 functions per page.
External power supply: 20 – 32 V DC (SELV) or through the ABB-Welcome bus. The freely pro-
grammable touch display (7") comes with a resolution of 1024 x 600.

Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
Type code Order code kg pc.
white glass – 6136/07-811-500 2CKA006136A0205 0.94 1
black – 6136/07-825-500 2CKA006136A0206 0.94 1
