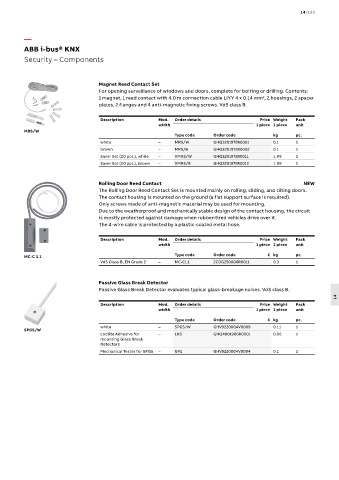

Page 1947 - Din prodcuts 2020

14/133

—
ABB i-bus® KNX
Security – Components

Magnet Reed Contact Set
For opening surveillance of windows and doors, complete for bolting or drilling. Contents:
1 magnet, 1 reed contact with 4.0 m connection cable LIYY 4 x 0.14 mm , 2 housings, 2 spacer
2
plates, 2 flanges and 4 anti-magnetic fixing screws. VdS class B.

Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
MRS/W
Type code Order code kg pc.
white – MRS/W GHQ3201972R0001 0.1 1
brown – MRS/B GHQ3201972R0002 0.1 1
Saver Set (20 pcs.), white – VMRS/W GHQ3201972R0011 1.99 1
Saver Set (20 pcs.), brown – VMRS/B GHQ3201972R0012 1.99 1

Rolling Door Reed Contact NEW
The Rolling Door Reed Contact Set is mounted mainly on rolling, sliding, and tilting doors.
The contact housing is mounted on the ground (a flat support surface is required).
Only screws made of anti-magnetic material may be used for mounting.
Due to the weatherproof and mechanically stable design of the contact housing, the circuit
is mostly protected against damage when rubber-tired vehicles drive over it.
The 4-wire cable is protected by a plastic-coated metal hose.

Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
Type code Order code € kg pc.
MC-C 1.1
VdS Class B, EN Grade 2 – MC-C1.1 2CDG250006R0011 0.3 1

Passive Glass Break Detector
Passive Glass Break Detector evaluates typical glass-breakage noises. VdS class B.
14
Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit

Type code Order code € kg pc.
white – SPGS/W GHV9220004V0009 0.11 1
SPGS/W
Loctite Adhesive for – LKS GHQ4001906R0001 0.06 1
mounting Glass Break
Detectors
Mechanical Tester for SPGS – GP2 GHV9220004V0004 0.1 1
