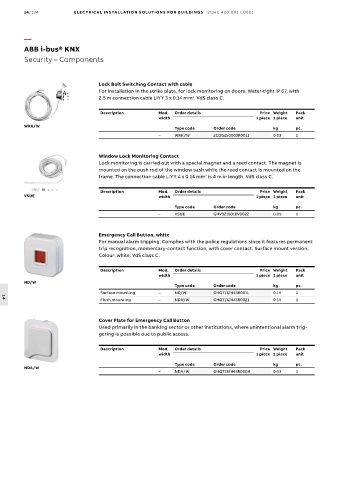

14/134 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
ABB i-bus® KNX
Security – Components

Lock Bolt Switching Contact with cable
For installation in the strike plate, for lock monitoring on doors. Water-tight IP 67, with
2.5 m connection cable LIYY 3 x 0.14 mm . VdS class C.
2
Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
WRK/W
Type code Order code kg pc.
– WRK/W 2CDG250003R0011 0.03 1

Window Lock Monitoring Contact
Lock monitoring is carried out with a special magnet and a reed contact. The magnet is
mounted on the push rod of the window sash while the reed contact is mounted on the
frame. The connection cable LIYY 4 x 0.14 mm is 4 m in length. VdS class C.
2
Description Mod. Order details Price Weight Pack
VSUE width 1 piece 1 piece unit

Type code Order code kg pc.
– VSUE GHV9210018V0022 0.09 1

Emergency Call Button, white
For manual alarm tripping. Complies with the police regulations since it features permanent
trip recognition, momentary-contact function, with cover contact. Surface mount version.
Colour: white. VdS class C.

Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
ND/W
Type code Order code kg pc.
Surface mounting – ND/W GHQ7132443R0011 0.15 1
Flush mounting – NDU/W GHQ7132443R0021 0.15 1
14

Cover Plate for Emergency Call Button
Used primarily in the banking sector or other institutions, where unintentional alarm trig-
gering is possible due to public access.

Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
Type code Order code kg pc.
NDA/W
– NDA/W GHQ7132443R0004 0.03 1
