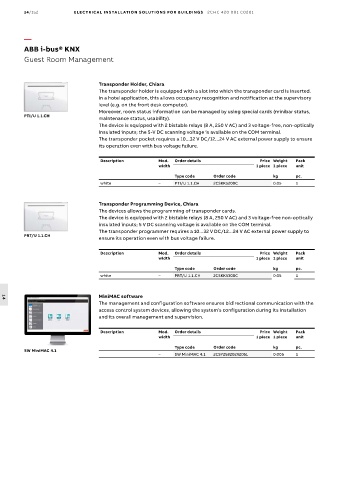

14/152 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
ABB i-bus® KNX
Guest Room Management

Transponder Holder, Chiara
The transponder holder is equipped with a slot into which the transponder card is inserted.
In a hotel application, this allows occupancy recognition and notification at the supervisory
level (e.g. on the front desk computer).
Moreover, room status information can be managed by using special cards (minibar status,
PTI/U 1.1.CH
maintenance status, usability).
The device is equipped with 2 bistable relays (8 A, 250 V AC) and 3 voltage-free, non-optically
insulated inputs; the 5-V DC scanning voltage is available on the COM terminal.
The transponder pocket requires a 10...32 V DC/12...24 V AC external power supply to ensure
its operation even with bus voltage failure.

Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
Type code Order code kg pc.
white – PTI/U 1.1.CH 2CSKK5200C 0.05 1

Transponder Programming Device, Chiara
The devices allows the programming of transponder cards.
The device is equipped with 2 bistable relays (8 A, 250 V AC) and 3 voltage-free non-optically
insulated inputs; 5 V DC scanning voltage is available on the COM terminal.
The transponder programmer requires a 10...32 V DC/12...24 V AC external power supply to
PRT/U 1.1.CH
ensure its operation even with bus voltage failure.

Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
Type code Order code kg pc.
white – PRT/U 1.1.CH 2CSKK5300C 0.05 1

MiniMAC software
14
The management and configuration software ensures bidirectional communication with the
access control system devices, allowing the system’s configuration during its installation
and its overall management and supervision.

Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit

Type code Order code kg pc.
SW MiniMAC 4.1
– SW MiniMAC 4.1 2CSY258202R2051 0.005 1
