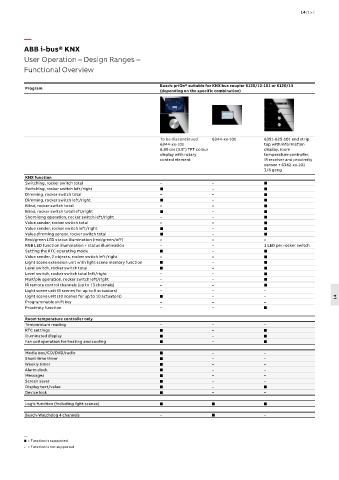

ABB i-bus® KNX
User Operation – Design Ranges –
Functional Overview

Busch-priOn® suitable for KNX bus coupler 6120/12-101 or 6120/13
Program
(depending on the specific combination)

To be discontinued 6344-xx-101 6351-825-101 end strip
6344-xx-101 top with information
8.89 cm (3.5") TFT colour display, room
display with rotary temperature controller,
control element IR receiver and proximity
sensor + 6342-xx-101
3/6 gang
KNX function
Switching, rocker switch total – – ■
Switching, rocker switch left/right ■ – ■
Dimming, rocker switch total – – ■
Dimming, rocker switch left/right ■ – ■
Blind, rocker switch total – – ■
Blind, rocker switch total left/right ■ – ■
Short-long operation, rocker switch left/right – – ■
Value sender, rocker switch total – – ■
Value sender, rocker switch left/right ■ – ■
Value dimming sensor, rocker switch total ■ – ■
Red/green LED status illumination (red/green/off) – – –
RGB LED function illumination + status illumination – – 1 LED per rocker switch
Setting the RTC operating mode ■ – ■
Value sender, 2 objects, rocker switch left/right – – ■
Light scene extension unit with light scene memory function ■ – ■
Level switch, rocker switch total ■ – ■
Level switch, rocker switch total left/right – – ■
Multiple operation, rocker switch left/right – – ■
IR remote control channels (up to 13 channels) – – ■
Light scene unit (8 scenes for up to 8 actuators) – – –
Light scene unit (10 scenes for up to 10 actuators) ■ – – 14
Programmable shift key – – –
Proximity function – – ■
Room temperature controller only
Temperature reading – – –
RTC settings ■ – ■
Illuminated display ■ – ■
Fan coil operation for heating and cooling ■ – ■

Media box/CD/DVD/radio ■ – –
Short-time timer ■ – –
Weekly timer ■ – –
Alarm clock ■ – –
Messages ■ – –
Screen saver ■ – –
Display text/value ■ – ■
Device lock ■ – –
Logic function (including light scenes) ■ ■ ■
Busch-Watchdog 4 channels – ■ –

—
 = Function is supported
– = Function is not supported
