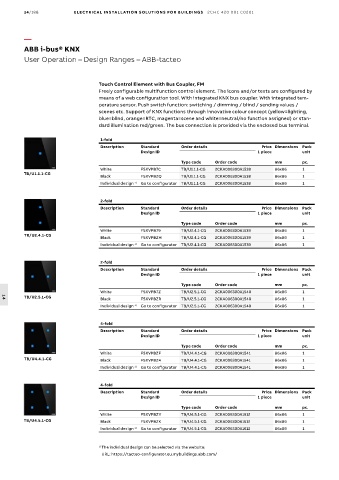

14/188 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
ABB i-bus® KNX
User Operation – Design Ranges – ABB-tacteo

Touch Control Element with Bus Coupler, FM
Freely configurable multifunction control element. The icons and/or texts are configured by
means of a web configuration tool. With integrated KNX bus coupler. With integrated tem-
perature sensor. Push switch function: switching / dimming / blind / sending values /
scenes etc. Support of KNX functions through innovative colour concept (yellow=lighting,
blue=blind, orange=RTC, magenta=scene and white=neutral/no function assigned) or stan-
dard illumination red/green. The bus connection is provided via the enclosed bus terminal.

1-fold
Description Standard Order details Price Dimensions Pack
Design ID 1 piece unit
Type code Order code mm pc.
White F5XVPB7C TB/U1.1.1-CG 2CKA006300A1538 86x86 1
TB/U1.1.1-CG
Black F5XVPBZQ TB/U1.1.1-CG 2CKA006300A1538 86x86 1
Individual design 1) Go to confi gurator TB/U1.1.1-CG 2CKA006300A1538 86x86 1

2-fold
Description Standard Order details Price Dimensions Pack
Design ID 1 piece unit
Type code Order code mm pc.
White F5XVPB79 TB/U2.4.1-CG 2CKA006300A1539 86x86 1
TB/U2.4.1-CG
Black F5XVPBZH TB/U2.4.1-CG 2CKA006300A1539 86x86 1
Individual design 1) Go to confi gurator TB/U2.4.1-CG 2CKA006300A1539 86x86 1

2-fold
Description Standard Order details Price Dimensions Pack
Design ID 1 piece unit
Type code Order code mm pc.
White F5XVPB7Z TB/U2.5.1-CG 2CKA006300A1540 86x86 1
TB/U2.5.1-CG Black F5XVPBZR TB/U2.5.1-CG 2CKA006300A1540 86x86 1
14
Individual design 1) Go to confi gurator TB/U2.5.1-CG 2CKA006300A1540 86x86 1

4-fold
Description Standard Order details Price Dimensions Pack
Design ID 1 piece unit
Type code Order code mm pc.
White F5XVPBZF TB/U4.4.1-CG 2CKA006300A1541 86x86 1
TB/U4.4.1-CG Black F5XVPBZ4 TB/U4.4.1-CG 2CKA006300A1541 86x86 1
Individual design 1) Go to confi gurator TB/U4.4.1-CG 2CKA006300A1541 86x86 1

4-fold
Description Standard Order details Price Dimensions Pack
Design ID 1 piece unit

Type code Order code mm pc.
White F5XVPBZY TB/U4.5.1-CG 2CKA006300A1612 86x86 1
TB/U4.5.1-CG Black F5XVPBZK TB/U4.5.1-CG 2CKA006300A1612 86x86 1
Individual design 1) Go to confi gurator TB/U4.5.1-CG 2CKA006300A1612 86x86 1

The individual design can be selected via the website:
1)
URL: https://tacteo-configurator.eu.mybuildings.abb.com/
