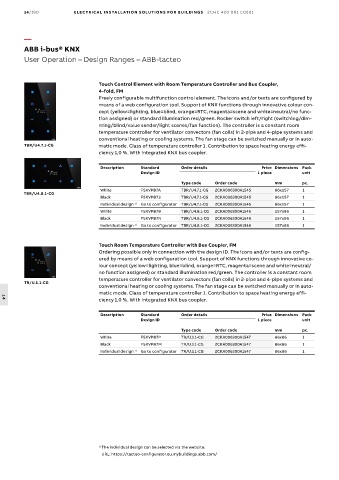

14/190 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
ABB i-bus® KNX
User Operation – Design Ranges – ABB-tacteo

Touch Control Element with Room Temperature Controller and Bus Coupler,
4-fold, FM
Freely configurable multifunction control element. The icons and/or texts are configured by
means of a web configuration tool. Support of KNX functions through innovative colour con-
cept (yellow=lighting, blue=blind, orange=RTC, magenta=scene and white=neutral/no func-
tion assigned) or standard illumination red/green. Rocker switch left/right (switching/dim-
ming/blind/value sender/light scenes/fan function). The controller is a constant room
temperature controller for ventilator convectors (fan coils) in 2-pipe and 4-pipe systems and
conventional heating or cooling systems. The fan stage can be switched manually or in auto-
TBR/U4.7.1-CG matic mode. Class of temperature controller 1. Contribution to space heating energy effi-
ciency 1,0 %. With integrated KNX bus coupler.

Description Standard Order details Price Dimensions Pack
Design ID 1 piece unit

Type code Order code mm pc.
White F5XVPB7A TBR/U4.7.1-CG 2CKA006300A1545 86x157 1
TBR/U4.8.1-CG
Black F5XVPB73 TBR/U4.7.1-CG 2CKA006300A1545 86x157 1
Individual design 1) Go to confi gurator TBR/U4.7.1-CG 2CKA006300A1545 86x157 1
White F5XVPB7B TBR/U4.8.1-CG 2CKA006300A1546 157x86 1
Black F5XVPB7N TBR/U4.8.1-CG 2CKA006300A1546 157x86 1
Individual design 1) Go to confi gurator TBR/U4.8.1-CG 2CKA006300A1546 157x86 1

Touch Room Temperature Controller with Bus Coupler, FM
Ordering possible only in connection with the design ID. The icons and/or texts are config-
ured by means of a web configuration tool. Support of KNX functions through innovative co-
lour concept (yellow=lighting, blue=blind, orange=RTC, magenta=scene and white=neutral/
no function assigned) or standard illumination red/green. The controller is a constant room
temperature controller for ventilator convectors (fan coils) in 2-pipe and 4-pipe systems and
TR/U.1.1-CG
conventional heating or cooling systems. The fan stage can be switched manually or in auto-
matic mode. Class of temperature controller 1. Contribution to space heating energy effi-
ciency 1,0 %. With integrated KNX bus coupler.
14
Description Standard Order details Price Dimensions Pack
Design ID 1 piece unit
Type code Order code mm pc.
White F5XVPB7P TR/U.1.1-CG 2CKA006300A1547 86x86 1
Black F5XVPB7M TR/U.1.1-CG 2CKA006300A1547 86x86 1
Individual design 1) Go to confi gurator TR/U.1.1-CG 2CKA006300A1547 86x86 1

The individual design can be selected via the website:
1)
URL: https://tacteo-configurator.eu.mybuildings.abb.com/
