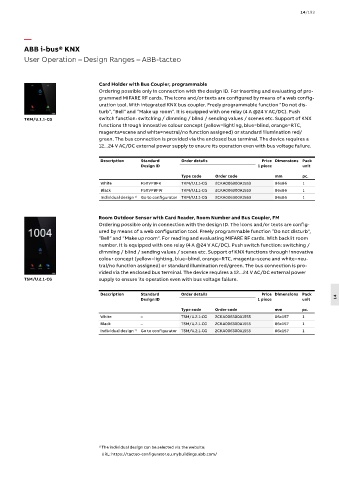

ABB i-bus® KNX
User Operation – Design Ranges – ABB-tacteo

Card Holder with Bus Coupler, programmable
Ordering possible only in connection with the design ID. For inserting and evaluating of pro-
grammed MIFARE RF cards. The icons and/or texts are configured by means of a web config-
uration tool. With integrated KNX bus coupler. Freely programmable function ”Do not dis-
turb“, ”Bell“ and ”Make up room“. It is equipped with one relay (4 A @24 V AC/DC). Push
TKM/U.1.1-CG switch function: switching / dimming / blind / sending values / scenes etc. Support of KNX
functions through innovative colour concept (yellow=lighting, blue=blind, orange=RTC,
magenta=scene and white=neutral/no function assigned) or standard illumination red/
green. The bus connection is provided via the enclosed bus terminal. The device requires a
12...24 V AC/DC external power supply to ensure its operation even with bus voltage failure.

Description Standard Order details Price Dimensions Pack
Design ID 1 piece unit
Type code Order code mm pc.
White F5XVPBFK TKM/U.1.1-CG 2CKA006300A1553 86x86 1
Black F5XVPBFW TKM/U.1.1-CG 2CKA006300A1553 86x86 1
Individual design 1) Go to confi gurator TKM/U.1.1-CG 2CKA006300A1553 86x86 1

Room Outdoor Sensor with Card Reader, Room Number and Bus Coupler, FM
Ordering possible only in connection with the design ID. The icons and/or texts are config-
ured by means of a web configuration tool. Freely programmable function ”Do not disturb“,
”Bell“ and ”Make up room“. For reading and evaluating MIFARE RF cards. With backlit room
number. It is equipped with one relay (4 A @24 V AC/DC). Push switch function: switching /
dimming / blind / sending values / scenes etc. Support of KNX functions through innovative
colour concept (yellow=lighting, blue=blind, orange=RTC, magenta=scene and white=neu-
tral/no function assigned) or standard illumination red/green. The bus connection is pro-
vided via the enclosed bus terminal. The device requires a 12...24 V AC/DC external power
TSM/U.2.1-CG supply to ensure its operation even with bus voltage failure.

Description Standard Order details Price Dimensions Pack
Design ID 1 piece unit 14
Type code Order code mm pc.
White – TSM/U.2.1-CG 2CKA006300A1555 86x157 1
Black – TSM/U.2.1-CG 2CKA006300A1555 86x157 1
Individual design 1) Go to confi gurator TSM/U.2.1-CG 2CKA006300A1555 86x157 1

The individual design can be selected via the website:
1)
URL: https://tacteo-configurator.eu.mybuildings.abb.com/
