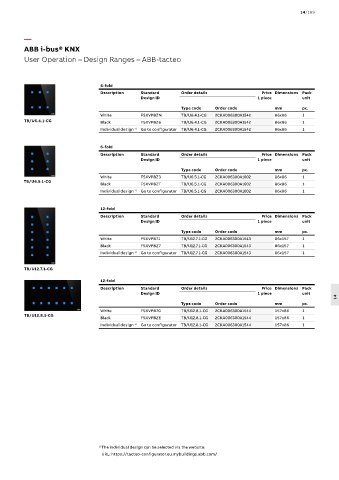

ABB i-bus® KNX
User Operation – Design Ranges – ABB-tacteo

6-fold
Description Standard Order details Price Dimensions Pack
Design ID 1 piece unit
Type code Order code mm pc.
White F5XVPBZN TB/U6.4.1-CG 2CKA006300A1542 86x86 1
TB/U6.4.1-CG Black F5XVPBZ6 TB/U6.4.1-CG 2CKA006300A1542 86x86 1
Individual design 1) Go to confi gurator TB/U6.4.1-CG 2CKA006300A1542 86x86 1

6-fold
Description Standard Order details Price Dimensions Pack
Design ID 1 piece unit

Type code Order code mm pc.
White F5XVPBZ3 TB/U6.5.1-CG 2CKA006300A1602 86x86 1
TB/U6.5.1-CG
Black F5XVPBZT TB/U6.5.1-CG 2CKA006300A1602 86x86 1
Individual design 1) Go to confi gurator TB/U6.5.1-CG 2CKA006300A1602 86x86 1

12-fold
Description Standard Order details Price Dimensions Pack
Design ID 1 piece unit
Type code Order code mm pc.
White F5XVPB7J TB/U12.7.1-CG 2CKA006300A1543 86x157 1
Black F5XVPBZ7 TB/U12.7.1-CG 2CKA006300A1543 86x157 1
Individual design 1) Go to confi gurator TB/U12.7.1-CG 2CKA006300A1543 86x157 1

TB/U12.7.1-CG

12-fold
Description Standard Order details Price Dimensions Pack
Design ID 1 piece unit
14
Type code Order code mm pc.
White F5XVPB7G TB/U12.8.1-CG 2CKA006300A1544 157x86 1
TB/U12.8.1-CG
Black F5XVPBZE TB/U12.8.1-CG 2CKA006300A1544 157x86 1
Individual design 1) Go to confi gurator TB/U12.8.1-CG 2CKA006300A1544 157x86 1

The individual design can be selected via the website:
1)
URL: https://tacteo-configurator.eu.mybuildings.abb.com/
