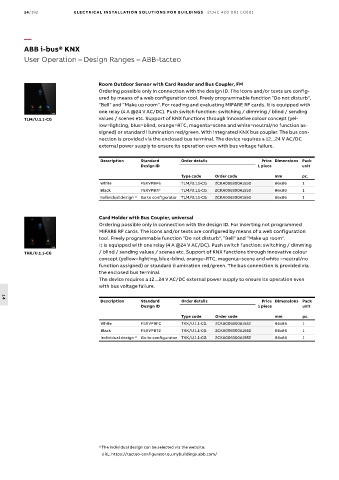

14/192 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
ABB i-bus® KNX
User Operation – Design Ranges – ABB-tacteo

Room Outdoor Sensor with Card Reader and Bus Coupler, FM
Ordering possible only in connection with the design ID. The icons and/or texts are config-
ured by means of a web configuration tool. Freely programmable function ”Do not disturb“,
”Bell“ and ”Make up room“. For reading and evaluating MIFARE RF cards. It is equipped with
one relay (4 A @24 V AC/DC). Push switch function: switching / dimming / blind / sending
TLM/U.1.1-CG values / scenes etc. Support of KNX functions through innovative colour concept (yel-
low=lighting, blue=blind, orange=RTC, magenta=scene and white=neutral/no function as-
signed) or standard illumination red/green. With integrated KNX bus coupler. The bus con-
nection is provided via the enclosed bus terminal. The device requires a 12...24 V AC/DC
external power supply to ensure its operation even with bus voltage failure.

Description Standard Order details Price Dimensions Pack
Design ID 1 piece unit
Type code Order code mm pc.
White F5XVPBF6 TLM/U.1.1-CG 2CKA006300A1550 86x86 1
Black F5XVPB7F TLM/U.1.1-CG 2CKA006300A1550 86x86 1
Individual design 1) Go to confi gurator TLM/U.1.1-CG 2CKA006300A1550 86x86 1

Card Holder with Bus Coupler, universal
Ordering possible only in connection with the design ID. For inserting not programmed
MIFARE RF cards. The icons and/or texts are configured by means of a web configuration
tool. Freely programmable function ”Do not disturb“, ”Bell“ and ”Make up room“.
It is equipped with one relay (4 A @24 V AC/DC). Push switch function: switching / dimming
TKK/U.1.1-CG / blind / sending values / scenes etc. Support of KNX functions through innovative colour
concept (yellow=lighting, blue=blind, orange=RTC, magenta=scene and white =neutral/no
function assigned) or standard illumination red/green. The bus connection is provided via
the enclosed bus terminal.
The device requires a 12...24 V AC/DC external power supply to ensure its operation even
with bus voltage failure.

Description Standard Order details Price Dimensions Pack
14
Design ID 1 piece unit
Type code Order code mm pc.
White F5XVPBFC TKK/U.1.1-CG 2CKA006300A1552 86x86 1
Black F5XVPB72 TKK/U.1.1-CG 2CKA006300A1552 86x86 1
Individual design 1) Go to confi gurator TKK/U.1.1-CG 2CKA006300A1552 86x86 1

The individual design can be selected via the website:
1)
URL: https://tacteo-configurator.eu.mybuildings.abb.com/
