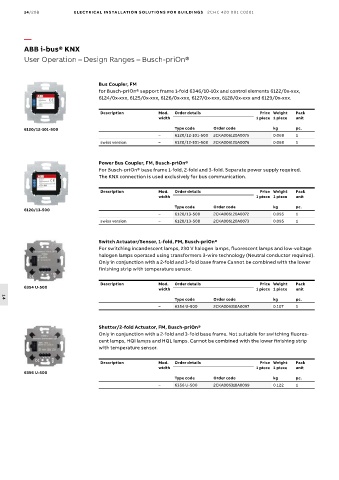

14/208 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
ABB i-bus® KNX
User Operation – Design Ranges – Busch-priOn®

Bus Coupler, FM
for Busch-priOn® support frame 1-fold 6346/10-10x and control elements 6122/0x-xxx,
6124/0x-xxx, 6125/0x-xxx, 6126/0x-xxx, 6127/0x-xxx, 6128/0x-xxx and 6129/0x-xxx.

Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit

6120/12-101-500 Type code Order code kg pc.
– 6120/12-101-500 2CKA006120A0075 0.068 1
swiss version – 6120/12-101-508 2CKA006120A0076 0.068 1

Power Bus Coupler, FM, Busch-priOn®
For Busch-priOn® base frame 1-fold, 2-fold and 3-fold. Separate power supply required.
The KNX connection is used exclusively for bus communication.

Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit

Type code Order code kg pc.
6120/13-500
– 6120/13-500 2CKA006120A0072 0.095 1
swiss version – 6120/13-508 2CKA006120A0073 0.095 1

Switch Actuator/Sensor, 1-fold, FM, Busch-priOn®
For switching incandescent lamps, 230 V halogen lamps, fluorescent lamps and low-voltage
halogen lamps operated using transformers 3-wire technology (Neutral conductor required).
Only in conjunction with a 2-fold and 3-fold base frame Cannot be combined with the lower
finishing strip with temperature sensor.

Description Mod. Order details Price Weight Pack
6354 U-500 width 1 piece 1 piece unit
Type code Order code kg pc.
14
– 6354 U-500 2CKA006310A0097 0.107 1

Shutter/2-fold Actuator, FM, Busch-priOn®
Only in conjunction with a 2-fold and 3-fold base frame. Not suitable for switching fluores-
cent lamps, HQI lamps and HQL lamps. Cannot be combined with the lower finishing strip
with temperature sensor.

Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
6356 U-500
Type code Order code kg pc.
– 6356 U-500 2CKA006310A0099 0.122 1
