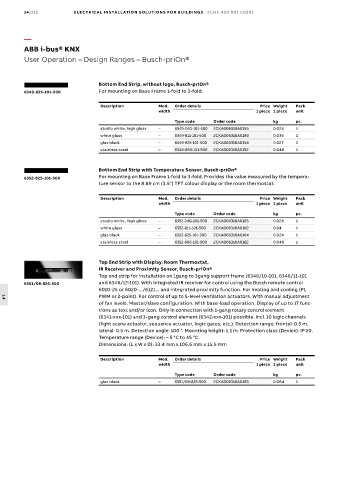

14/212 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
ABB i-bus® KNX
User Operation – Design Ranges – Busch-priOn®

Bottom End Strip, without logo, Busch-priOn®
6349-825-101-500 For mounting on Base Frame 1-fold to 3-fold.

Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
Type code Order code kg pc.
studio white, high gloss – 6349-24G-101-500 2CKA006310A0155 0.024 1
white glass – 6349-811-101-500 2CKA006310A0180 0.035 1
glas black – 6349-825-101-500 2CKA006310A0154 0.027 1
stainless steel – 6349-860-101-500 2CKA006310A0152 0.048 1

Bottom End Strip with Temperature Sensor, Busch-priOn®
6352-825-101-500 For mounting on Base Frame 1-fold to 3-fold. Provides the value measured by the tempera-
ture sensor to the 8.89 cm (3.5") TFT colour display or the room thermostat.

Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
Type code Order code kg pc.
studio white, high gloss – 6352-24G-101-500 2CKA006310A0165 0.024 1
white glass – 6352-811-101-500 2CKA006310A0182 0.04 1
glas black – 6352-825-101-500 2CKA006310A0164 0.024 1
stainless steel – 6352-860-101-500 2CKA006310A0162 0.048 1

Top End Strip with Display, Room Thermostat,
IR Receiver and Proximity Sensor, Busch-priOn®
Top end strip for installation on 1gang to 3gang support frame (6346/10-101, 6346/11-101
6351/08-825-500 and 6346/12-101). With integrated IR receiver for control using the Busch remote control
6010-25 or 6020-.../6121... and integrated proximity function. For heating and cooling (PI,
PWM or 2-point). For control of up to 5-level ventilation actuators. With manual adjustment
14
of fan levels. Master/slave configuration. With base-load operation. Display of up to 17 func-
tions as text and/or icon. Only in connection with 1-gang rotary control element
(6341-xxx-101) and 3-gang control element (6342-xxx-101) possible. Incl. 10 logic channels
(light scene actuator, sequence actuator, logic gates, etc.). Detection range: frontal: 0.5 m,
lateral: 0.5 m. Detection angle: 100 °. Mounting height: 1.1 m. Protection class (Device): IP 20.
Temperature range (Device): – 5 °C to 45 °C.
Dimensions: (L x W x D): 33.4 mm x 106.6 mm x 15.5 mm

Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit

Type code Order code kg pc.
glas black – 6351/08-825-500 2CKA006310A0183 0.064 1
