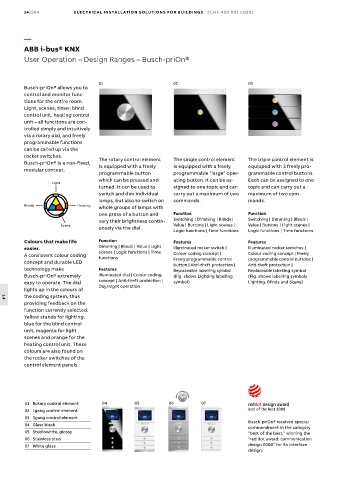

14/204 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
ABB i-bus® KNX
User Operation – Design Ranges – Busch-priOn®

01 02 03
Busch-priOn® allows you to
control and monitor func-
tions for the entire room.
Light, scenes, timer, blind
control unit, heating control
unit – all functions are con-
trolled simply and intuitively
via a rotary dial, and freely
programmable functions
can be called up via the
rocker switches. The rotary control element The single control element The triple control element is
Busch-priOn® is a non-fixed, is equipped with a freely is equipped with a freely equipped with 3 freely pro-
modular concept.
programmable button programmable “large” oper- grammable control buttons.
which can be pressed and ating button. It can be as- Each can be assigned to one
Light
turned. It can be used to signed to one topic and can topic and can carry out a
switch and dim individual carry out a maximum of two maximum of two com-
lamps, but also to switch on commands. mands.
Blinds Heating
whole groups of lamps with
one press of a button and Function Function
vary their brightness contin- Switching | Dimming | Blinds | Switching | Dimming | Blinds |
Scene Value | Buttons | Light scenes | Value | Buttons | Light scenes |
uously via the dial.
Logic functions | Time functions Logic functions | Time functions
Colours that make life Function Features Features
easier. Dimming | Blinds | Value | Light Illuminated rocker switch | Illuminated rocker switches |
A consistent colour coding scenes | Logic functions | Time Colour coding concept | Colour coding concept | Freely
functions
concept and durable LED Freely programmable control programmable control buttons |
Anti-theft protection |
button | Anti-theft protection |
technology make Features Replaceable labelling symbol Replaceable labelling symbol
Busch-priOn® extremely Illuminated dial | Colour coding (Fig. shows Lighting labelling (Fig. shows labelling symbols
easy to operate. The dial concept | Anti-theft protection | symbol) Lighting, Blinds and Scene)
lights up in the colours of Day/night operation
the coding system, thus
14
providing feedback on the
function currently selected.
Yellow stands for lighting,
blue for the blind control
unit, magenta for light
scenes and orange for the
heating control unit. These
colours are also found on
the rocker switches of the
control element panels.

01 Rotary control element 04 05 06 07
02 1gang control element
03 3gang control element
Busch-priOn® received special
04 Glass black
commendment in the category
05 Studiowhite, glossy “best of the best,” winning the
06 Stainless steel “red dot award: communication
07 White glass design 2008” for its interface
design.
