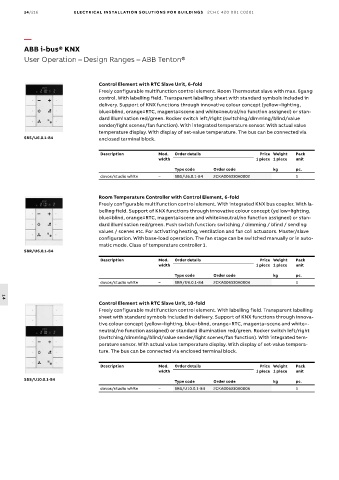

14/216 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
ABB i-bus® KNX
User Operation – Design Ranges – ABB Tenton®

Control Element with RTC Slave Unit, 6-fold
Freely configurable multifunction control element. Room Thermostat slave with max. 6gang
control. With labelling field. Transparent labelling sheet with standard symbols included in
delivery. Support of KNX functions through innovative colour concept (yellow=lighting,
blue=blind, orange=RTC, magenta=scene and white=neutral/no function assigned) or stan-
dard illumination red/green. Rocker switch left/right (switching/dimming/blind/value
sender/light scenes/fan function). With integrated temperature sensor. With actual value
temperature display. With display of set-value temperature. The bus can be connected via
SBS/U6.0.1-84 enclosed terminal block.

Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
Type code Order code kg pc.
davos/studio white – SBS/U6.0.1-84 2CKA006330A0002 1

Room Temperature Controller with Control Element, 6-fold
Freely configurable multifunction control element. With integrated KNX bus coupler. With la-
belling field. Support of KNX functions through innovative colour concept (yellow=lighting,
blue=blind, orange=RTC, magenta=scene and white=neutral/no function assigned) or stan-
dard illumination red/green. Push switch function: switching / dimming / blind / sending
values / scenes etc. For activating heating, ventilation and fan coil actuators. Master/slave
configuration. With base-load operation. The fan stage can be switched manually or in auto-
matic mode. Class of temperature controller 1.
SBR/U6.0.1-84
Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
Type code Order code kg pc.
davos/studio white – SBR/U6.0.1-84 2CKA006330A0004 1

14
Control Element with RTC Slave Unit, 10-fold
Freely configurable multifunction control element. With labelling field. Transparent labelling
sheet with standard symbols included in delivery. Support of KNX functions through innova-
tive colour concept (yellow=lighting, blue=blind, orange=RTC, magenta=scene and white=-
neutral/no function assigned) or standard illumination red/green. Rocker switch left/right
(switching/dimming/blind/value sender/light scenes/fan function). With integrated tem-
perature sensor. With actual value temperature display. With display of set-value tempera-
ture. The bus can be connected via enclosed terminal block.

Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
SBS/U10.0.1-84 Type code Order code kg pc.
davos/studio white – SBS/U10.0.1-84 2CKA006330A0006 1
