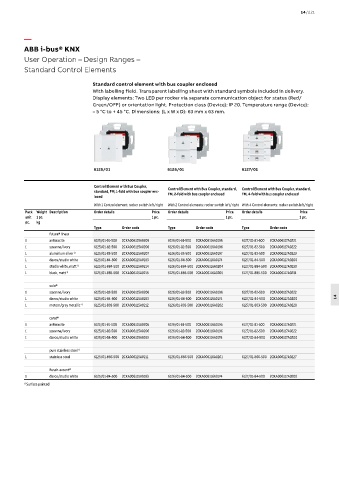

14/221

—
ABB i-bus® KNX
User Operation – Design Ranges –
Standard Control Elements

Standard control element with bus coupler enclosed
With labelling field. Transparent labelling sheet with standard symbols included in delivery.
Display elements: Two LED per rocker via separate communication object for status (Red/
Green/OFF) or orientation light. Protection class (Device): IP 20. Temperature range (Device):
– 5 °C to + 45 °C. Dimensions: (L x W x D): 63 mm x 63 mm.

6125/01 6126/01 6127/01

Control Element with Bus Coupler,
standard, FM, 1-fold with bus coupler enc- Control Element with Bus Coupler, standard, Control Element with Bus Coupler, standard,
losed FM, 2-fold with bus coupler enclosed FM, 4-fold with bus coupler enclosed
With 1 Control element: rocker switch left/right With 2 Control elements: rocker switch left/right With 4 Control elements: rocker switch left/right
Pack Weight Description Order details Price Order details Price Order details Price
unit 1 pc. 1 pc. 1 pc. 1 pc.
pc. kg
Type Order code Type Order code Type Order code
future® linear
1 anthracite 6125/01-81-500 2CKA006115A0205 6126/01-81-500 2CKA006116A0195 6127/01-81-500 2CKA006117A0221
1 savanne/ivory 6125/01-82-500 2CKA006115A0206 6126/01-82-500 2CKA006116A0196 6127/01-82-500 2CKA006117A0222
1 aluminium silver 1) 6125/01-83-500 2CKA006115A0207 6126/01-83-500 2CKA006116A0197 6127/01-83-500 2CKA006117A0223
1 davos/studio white 6125/01-84-500 2CKA006115A0183 6126/01-84-500 2CKA006116A0174 6127/01-84-500 2CKA006117A0200
1 studio white, matt 1) 6125/01-884-500 2CKA006115A0214 6126/01-884-500 2CKA006116A0204 6127/01-884-500 2CKA006117A0230
1 black, matt 1) 6125/01-885-500 2CKA006115A0215 6126/01-885-500 2CKA006116A0205 6127/01-885-500 2CKA006117A0231

solo®
1 savanne/ivory 6125/01-82-500 2CKA006115A0206 6126/01-82-500 2CKA006116A0196 6127/01-82-500 2CKA006117A0222
1 davos/studio white 6125/01-84-500 2CKA006115A0183 6126/01-84-500 2CKA006116A0174 6127/01-84-500 2CKA006117A0200 14
1 meteor/grey metallic 1) 6125/01-803-500 2CKA006115A0212 6126/01-803-500 2CKA006116A0202 6127/01-803-500 2CKA006117A0228

carat®
1 anthracite 6125/01-81-500 2CKA006115A0205 6126/01-81-500 2CKA006116A0195 6127/01-81-500 2CKA006117A0221
1 savanne/ivory 6125/01-82-500 2CKA006115A0206 6126/01-82-500 2CKA006116A0196 6127/01-82-500 2CKA006117A0222
1 davos/studio white 6125/01-84-500 2CKA006115A0183 6126/01-84-500 2CKA006116A0174 6127/01-84-500 2CKA006117A0200

pure stainless steel 1)
1 stainless steel 6125/01-866-500 2CKA006115A0211 6126/01-866-500 2CKA006116A0201 6127/01-866-500 2CKA006117A0227
Busch-axcent®
1 davos/studio white 6125/01-84-500 2CKA006115A0183 6126/01-84-500 2CKA006116A0174 6127/01-84-500 2CKA006117A0200
1) Surface painted
