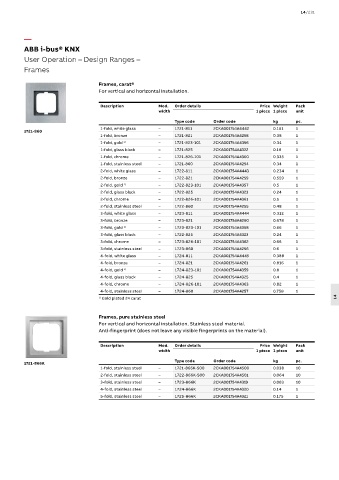

P. 2045
14/231
—
ABB i-bus® KNX
User Operation – Design Ranges –
Frames
Frames, carat®
For vertical and horizontal installation.
Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
Type code Order code kg pc.
1-fold, white glass – 1721-811 2CKA001754A4442 0.161 1
1721-860
1-fold, bronze – 1721-821 2CKA001754A4258 0.38 1
1-fold, gold 1) – 1721-823-101 2CKA001754A4356 0.34 1
1-fold, glass black – 1721-825 2CKA001754A4322 0.16 1
1-fold, chrome – 1721-826-101 2CKA001754A4360 0.335 1
1-fold, stainless steel – 1721-860 2CKA001754A4254 0.34 1
2-fold, white glass – 1722-811 2CKA001754A4443 0.234 1
2-fold, bronze – 1722-821 2CKA001754A4259 0.559 1
2-fold, gold 1) – 1722-823-101 2CKA001754A4357 0.5 1
2-fold, glass black – 1722-825 2CKA001754A4323 0.24 1
2-fold, chrome – 1722-826-101 2CKA001754A4361 0.5 1
2-fold, stainless steel – 1722-860 2CKA001754A4255 0.48 1
3-fold, white glass – 1723-811 2CKA001754A4444 0.312 1
3-fold, bronze – 1723-821 2CKA001754A4260 0.678 1
3-fold, gold 1) – 1723-823-101 2CKA001754A4358 0.66 1
3-fold, glass black – 1722-825 2CKA001754A4323 0.24 1
3-fold, chrome – 1723-826-101 2CKA001754A4362 0.66 1
3-fold, stainless steel – 1723-860 2CKA001754A4256 0.6 1
4-fold, white glass – 1724-811 2CKA001754A4445 0.388 1
4-fold, bronze – 1724-821 2CKA001754A4261 0.816 1
4-fold, gold 1) – 1724-823-101 2CKA001754A4359 0.8 1
4-fold, glass black – 1724-825 2CKA001754A4325 0.4 1
4-fold, chrome – 1724-826-101 2CKA001754A4363 0.82 1
4-fold, stainless steel – 1724-860 2CKA001754A4257 0.758 1
1) Gold plated 24 carat 14
Frames, pure stainless steel
For vertical and horizontal installation. Stainless steel material.
Anti-fingerprint (does not leave any visible fingerprints on the material).
Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
Type code Order code kg pc.
1721-866K
1-fold, stainless steel – 1721-866K-500 2CKA001754A4500 0.038 10
2-fold, stainless steel – 1722-866K-500 2CKA001754A4501 0.064 10
3-fold, stainless steel – 1723-866K 2CKA001754A4319 0.083 10
4-fold, stainless steel – 1724-866K 2CKA001754A4320 0.14 1
5-fold, stainless steel – 1725-866K 2CKA001754A4321 0.175 1
