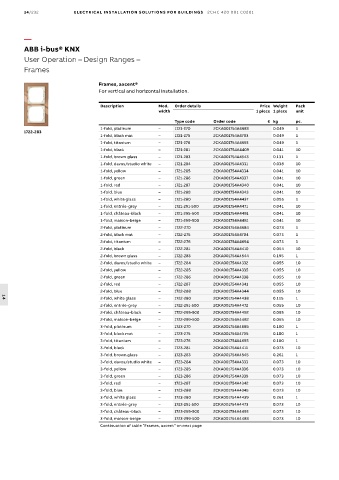

14/232 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
ABB i-bus® KNX
User Operation – Design Ranges –
Frames

Frames, axcent®
For vertical and horizontal installation.

Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
Type code Order code € kg pc.
1-fold, platinum – 1721-270 2CKA001754A4683 0.049 1
1722-283
1-fold, black mat – 1721-275 2CKA001754A4703 0.049 1
1-fold, titanium – 1721-276 2CKA001754A4693 0.049 1
1-fold, black – 1721-281 2CKA001754A4409 0.041 10
1-fold, brown glass – 1721-283 2CKA001754A4543 0.131 1
1-fold, davos/studio white – 1721-284 2CKA001754A4331 0.038 10
1-fold, yellow – 1721-285 2CKA001754A4334 0.041 10
1-fold, green – 1721-286 2CKA001754A4337 0.041 10
1-fold, red – 1721-287 2CKA001754A4340 0.041 10
1-fold, blue – 1721-288 2CKA001754A4343 0.041 10
1-fold, white glass – 1721-280 2CKA001754A4437 0.095 1
1-fold, entrée-grey – 1721-291-500 2CKA001754A4471 0.041 10
1-fold, château-black – 1721-295-500 2CKA001754A4491 0.041 10
1-fold, maison-beige – 1721-299-500 2CKA001754A4481 0.041 10
2-fold, platinum – 1722-270 2CKA001754A4684 0.073 1
2-fold, black mat – 1722-275 2CKA001754A4704 0.073 1
2-fold, titanium – 1722-276 2CKA001754A4694 0.073 1
2-fold, black – 1722-281 2CKA001754A4410 0.054 10
2-fold, brown glass – 1722-283 2CKA001754A4544 0.195 1
2-fold, davos/studio white – 1722-284 2CKA001754A4332 0.055 10
2-fold, yellow – 1722-285 2CKA001754A4335 0.055 10
2-fold, green – 1722-286 2CKA001754A4338 0.055 10
2-fold, red – 1722-287 2CKA001754A4341 0.055 10
2-fold, blue – 1722-288 2CKA001754A4344 0.055 10
2-fold, white glass – 1722-280 2CKA001754A4438 0.115 1
14
2-fold, entrée-grey – 1722-291-500 2CKA001754A4472 0.055 10
2-fold, château-black – 1722-295-500 2CKA001754A4492 0.055 10
2-fold, maison-beige – 1722-299-500 2CKA001754A4482 0.055 10
3-fold, platinum – 1723-270 2CKA001754A4685 0.100 1
3-fold, black mat – 1723-275 2CKA001754A4705 0.100 1
3-fold, titanium – 1723-276 2CKA001754A4695 0.100 1
3-fold, black – 1723-281 2CKA001754A4411 0.073 10
3-fold, brown glass – 1723-283 2CKA001754A4545 0.261 1
3-fold, davos/studio white – 1723-284 2CKA001754A4333 0.073 10
3-fold, yellow – 1723-285 2CKA001754A4336 0.073 10
3-fold, green – 1723-286 2CKA001754A4339 0.073 10
3-fold, red – 1723-287 2CKA001754A4342 0.073 10
3-fold, blue – 1723-288 2CKA001754A4345 0.073 10
3-fold, white glass – 1723-280 2CKA001754A4439 0.261 1
3-fold, entrée-grey – 1723-291-500 2CKA001754A4473 0.073 10
3-fold, château-black – 1723-295-500 2CKA001754A4493 0.073 10
3-fold, maison-beige – 1723-299-500 2CKA001754A4483 0.073 10
Continuation of table “Frames, axcent” on next page
