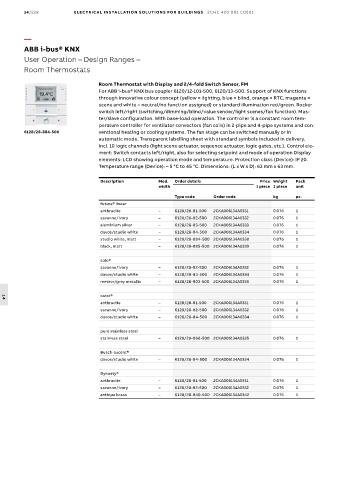

14/228           ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS   2CHC 420 001 C0201




          —
          ABB i-bus® KNX
          User Operation – Design Ranges –
          Room Thermostats


                                    Room Thermostat with Display and 2/4-fold Switch Sensor, FM
                                    For ABB i-bus® KNX bus coupler 6120/12-101-500, 6120/13-500. Support of KNX functions
                                    through innovative colour concept (yellow = lighting, blue = blind, orange = RTC, magenta =
                                    scene and white = neutral/no function assigned) or standard illumination red/green. Rocker
                                    switch left/right (switching/dimming/blind/value sender/light scenes/fan function). Mas-
                                    ter/slave configuration. With base-load operation. The controller is a constant room tem-
                                    perature controller for ventilator convectors (fan coils) in 2-pipe and 4-pipe systems and con-
          6128/28-884-500           ventional heating or cooling systems. The fan stage can be switched manually or in
                                    automatic mode. Transparent labelling sheet with standard symbols included in delivery.
                                    Incl. 10 logic channels (light scene actuator, sequence actuator, logic gates, etc.). Control ele-
                                    ment: Switch contacts left/right, also for selecting setpoint and mode of operation Display
                                    elements: LCD showing operation mode and temperature. Protection class (Device): IP 20.
                                    Temperature range (Device): – 5 °C to 45 °C. Dimensions: (L x W x D): 63 mm x 63 mm.

                                    Description          Mod.  Order details                Price Weight  Pack
                                                         width                             1 piece 1 piece  unit
                                                              Type code     Order code           kg      pc.
                                    future® linear
                                    anthracite           –    6128/28-81-500  2CKA006134A0331    0.076   1
                                    savanne/ivory        –    6128/28-82-500  2CKA006134A0332    0.076   1
                                    aluminium silver     –    6128/28-83-500  2CKA006134A0333    0.076   1
                                    davos/studio white   –    6128/28-84-500  2CKA006134A0334    0.076   1
                                    studio white, matt   –    6128/28-884-500 2CKA006134A0338    0.076   1
                                    black, matt          –    6128/28-885-500  2CKA006134A0339   0.076   1

                                    solo®
                                    savanne/ivory        –    6128/28-82-500  2CKA006134A0332    0.076   1
                                    davos/studio white   –    6128/28-84-500  2CKA006134A0334    0.076   1
                                    meteor/grey metallic  –   6128/28-803-500  2CKA006134A0336   0.076   1

                                    carat®
  14
                                    anthracite           –    6128/28-81-500  2CKA006134A0331    0.076   1
                                    savanne/ivory        –    6128/28-82-500  2CKA006134A0332    0.076   1
                                    davos/studio white   –    6128/28-84-500  2CKA006134A0334    0.076   1

                                    pure stainless steel
                                    stainless steel      –    6128/28-866-500  2CKA006134A0335   0.076   1

                                    Busch-axcent®
                                    davos/studio white   –    6128/28-84-500  2CKA006134A0334    0.076   1

                                    Dynasty®
                                    anthracite           –    6128/28-81-500  2CKA006134A0331    0.076   1
                                    savanne/ivory        –    6128/28-82-500  2CKA006134A0332    0.076   1
                                    antique brass        –    6128/28-840-500 2CKA006134A0342    0.076   1
