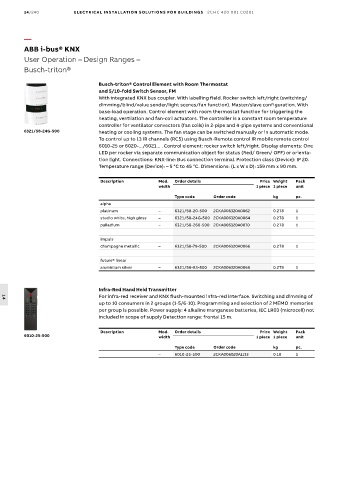

14/240 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
ABB i-bus® KNX
User Operation – Design Ranges –
Busch-triton®

Busch-triton® Control Element with Room Thermostat
and 5/10-fold Switch Sensor, FM
With integrated KNX bus coupler. With labelling field. Rocker switch left/right (switching/
dimming/blind/value sender/light scenes/fan function). Master/slave configuration. With
base-load operation. Control element with room thermostat function for triggering the
heating, ventilation and fan-coil actuators. The controller is a constant room temperature
controller for ventilator convectors (fan coils) in 2-pipe and 4-pipe systems and conventional
6321/58-24G-500 heating or cooling systems. The fan stage can be switched manually or in automatic mode.
To control up to 13 IR channels (RC5) using Busch-Remote control IR mobile remote control
6010-25 or 6020-.../6021... . Control element: rocker switch left/right. Display elements: One
LED per rocker via separate communication object for status (Red/ Green/ OFF) or orienta-
tion light. Connections: KNX-line: Bus connection terminal. Protection class (Device): IP 20.
Temperature range (Device): – 5 °C to 45 °C. Dimensions: (L x W x D): 159 mm x 90 mm.

Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
Type code Order code kg pc.
alpha
platinum – 6321/58-20-500 2CKA006320A0062 0.278 1
studio white, high gloss – 6321/58-24G-500 2CKA006320A0064 0.278 1
palladium – 6321/58-260-500 2CKA006320A0070 0.278 1

impuls
champagne metallic – 6321/58-79-500 2CKA006320A0066 0.278 1

future® linear
aluminium silver – 6321/58-83-500 2CKA006320A0068 0.278 1

Infra-Red Hand Held Transmitter
For infra-red receiver and KNX flush-mounted infra-red interface. Switching and dimming of
14
up to 10 consumers in 2 groups (1-5/6-10). Programming and selection of 2 MEMO memories
per group is possible. Power supply: 4 alkaline manganese batteries, IEC LR03 (microcell) not
included in scope of supply Detection range: frontal 15 m.

Description Mod. Order details Price Weight Pack
6010-25-500 width 1 piece 1 piece unit

Type code Order code kg pc.
– 6010-25-500 2CKA006020A1133 0.18 1
