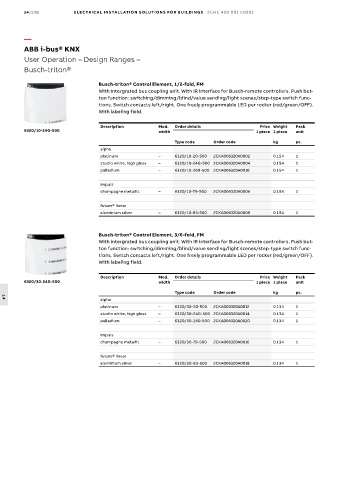

14/238 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
ABB i-bus® KNX
User Operation – Design Ranges –
Busch-triton®

Busch-triton® Control Element, 1/2-fold, FM
With intergrated bus coupling unit. With IR interface for Busch-remote controllers. Push but-
ton function: switching/dimming/blind/value sending/light scenes/step-type switch func-
tions. Switch contacts left/right. One freely programmable LED per rocker (red/green/OFF).
With labeling field.

Description Mod. Order details Price Weight Pack
6320/10-24G-500 width 1 piece 1 piece unit
Type code Order code kg pc.
alpha
platinum – 6320/10-20-500 2CKA006320A0002 0.154 1
studio white, high gloss – 6320/10-24G-500 2CKA006320A0004 0.154 1
palladium – 6320/10-260-500 2CKA006320A0010 0.154 1

impuls
champagne metallic – 6320/10-79-500 2CKA006320A0006 0.154 1

future® linear
aluminium silver – 6320/10-83-500 2CKA006320A0008 0.154 1

Busch-triton® Control Element, 3/6-fold, FM
With intergrated bus coupling unit. With IR interface for Busch-remote controllers. Push but-
ton function: switching/dimming/blind/value sending/light scenes/step-type switch func-
tions. Switch contacts left/right. One freely programmable LED per rocker (red/green/OFF).
With labeling field.

Description Mod. Order details Price Weight Pack
6320/30-24G-500 width 1 piece 1 piece unit

Type code Order code kg pc.
alpha
14
platinum – 6320/30-20-500 2CKA006320A0012 0.134 1
studio white, high gloss – 6320/30-24G-500 2CKA006320A0014 0.134 1
palladium – 6320/30-260-500 2CKA006320A0020 0.134 1

impuls
champagne metallic – 6320/30-79-500 2CKA006320A0016 0.134 1

future® linear
aluminium silver – 6320/30-83-500 2CKA006320A0018 0.134 1
