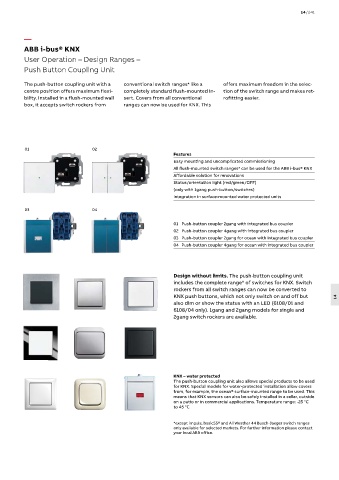

          ABB i-bus® KNX
          User Operation – Design Ranges –
          Push Button Coupling Unit


          The push-button coupling unit with a   conventional switch ranges* like a   offers maximum freedom in the selec-
          centre position offers maximum flexi-  completely standard flush-mounted in-  tion of the switch range and makes ret-
          bility. Installed in a flush-mounted wall   sert. Covers from all conventional   rofitting easier.
          box, it accepts switch rockers from   ranges can now be used for KNX. This








          01                     02
                                                              Features
                                                              Easy mounting and uncomplicated commissioning
                                                              All flush-mounted switch ranges* can be used for the ABB i-bus® KNX
                                                              Affordable solution for renovations
                                                              Status/orientation light (red/green/OFF)
                                                              (only with 1gang push-button/switches)
                                                              Integration in surface-mounted water protected units

          03                     04

                                                              01  Push-button coupler 2gang with integrated bus coupler
                                                              02  Push-button coupler 4gang with integrated bus coupler
                                                              03  Push-button coupler 2gang for ocean with integrated bus coupler
                                                              04  Push-button coupler 4gang for ocean with integrated bus coupler





                                                              Design without limits. The push-button coupling unit
                                                              includes the complete range* of switches for KNX. Switch
                                                              rockers from all switch ranges can now be converted to
                                                              KNX push buttons, which not only switch on and off but   14
                                                              also dim or show the status with an LED (6108/01 and
                                                              6108/04 only). 1gang and 2gang models for single and
                                                              2gang switch rockers are available.











                                                              KNX – water protected
                                                              The push-button coupling unit also allows special products to be used
                                                              for KNX. Special models for water-protected installation allow covers
                                                              from, for example, the ocean® surface-mounted range to be used. This
                                                              means that KNX sensors can also be safely installed in a cellar, outside
                                                              on a patio or in commercial applications. Temperature range: -25 °C
                                                              to 45 °C

                                                              *except impuls, basic55® and All Weather 44 Busch-Jaeger switch ranges
                                                              only available for selected markets. For further information please contact
                                                              your local ABB office.
